MotorAnalyzer3

Beschreibung

The universal tool.

The universal MotorAnalyzer3 is used to test electric motors and winding goods. It combines 14 different test methods in a single user-friendly and mobile device. The combination of test methods, its extremely compact design and the battery operation option make the MotorAnalyzer3 an ideal tool for on-site use – even in difficult installation situations.

To test a three-phase motor, the three winding connections and the motor housing are connected to the tester. For highly accurate resistance measurement, this should be done using the four-wire method. The MotorAnalyzer3 then automatically starts the surge voltage, resistance, inductance and high voltage tests one after the other. To do this, the various test methods are automatically switched in sequence to the four measuring points via the internal relay matrix.

In addition to the motor test, the MotorAnalyzer3 also provides assistance in adjusting the brush rocker for DC motors and for locating faults in the two slots in which the coil with the turn-to-turn fault is located.

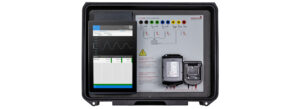

The MotorAnalyzer3 is housed in a very compact, robust and waterproof case. In addition to the generously designed display it features a storage compartment for all measuring cables and test probes. This means that the operator always has all the necessary components quickly at hand when taking measurements on site.

Technik

Technical specifications overview.

Autotest

	DUT properties, nominal voltage, test standard range, DUT condition …Done!

• automatic stator and motor test
• fully-automatic fault analysis
• connect once – then test everything
  • automatic switching between the test methods
  • automatic switching between all test leads

Surge voltage

• up to 3,000 V
• automatic and manual surge voltage tests
• surge voltage tests specifically designed for stators
• surge voltage tests specifically designed for fully assembled motors
  automatic step-by-step test voltage increase (peak to peak)
• 1, 2 and 3-phase
• graphical visualization of the surge wave
• automatic analysis

Resistance

• 1, 2 and 3-phase
• unbalance detection – scattering between phases
• high-precision 4-wire measurement (4W)
• ambient/winding temperature compensation

Inductance

• 1-, 2- and 3-phase
• unbalance detection – scattering between phases
• high-precision 4-wire measurement (4W)

RIC-Test (Rotor Influence Check) – squirrel cage rotor test

• 3-phase
• measurement of the angle-dependent unbalance of the squirrel-cage rotor

Impedance

• 1-, 2- and 3-phase
• unbalance detection – scattering between phases
• high-precision 4-wire measurement (4W)

High voltage DC

• 0 – 6,000 V DC
• manually adjustable
• programmable (automatic)
• step voltage test

Polarization index & DAR

• 0 – 6,000 V DC
• PI test
• DAR test
• automated measurement

Insulation resistance

• 0 – 6,000 V DC
• up to 500 GΩ (1 TΩ)
• e.g. with 500 V in accordance with VDE 0701
• ambient/winding temperature compensation

PE/GB-resistance

• in accordance with VDE 0701

Capacitance

• Capacitance between the entire winding and the motor frame

Neutral Zone adjustment for DC motors

• bar chart indicating the deviation from the neutral zone
• acoustic indication of the misalignment from the neutral zone by means of a signal tone
  This allows the user to focus on the adjustment of the brushes during the measurement, without having to look at the display.

Rotary Field of the stator

• stator – rotary field measurement with a rotary field probe

Sense of rotation of the motor

• motor – sense of rotation measurement

Locating the slots with Turn-to-Turn fault

• Locating the slot in which the turn-to-turn fault is located by means of a test probe
• for stators and wound rotors
• bar chart indicating the slot-to-slot deviation
• modulated acoustic notification if test results are outside the specified limits
  This allows the user to focus on the positioning of the measuring probe above the slot during the measurement, without having to look at the display.

Power Supply

• replaceable Makita® batteries – exchangeable during operation, available for purchase worldwide
• world voltage range 90 – 250 V, 47 – 63 Hz

⇒ Find more details in PDF brochures under Downloads.

Anwendungen

In the workshop.

• Testing a motor with the fully automated Autotest or directly with single test methods.

High-voltage test.

• Testing with test probes to find faults to frame and phase-to-phase faults.

Inspection of a rotor.

• Resistance test, moving from bar to bar with 4-wire test probes.

Where is the turn-to-turn fault?

• Turn-to-turn fault detection of a stator with a test probe, moved from slot to slot through the entire stator.

Incoming goods inspection.

• A typical example of an application in incoming goods: the autotest shows the defects at a glance
