Your local contact:Surge Testers – from 3,000 to 50,000 V
Our broad portfolio covers nearly all applications for testing winding goods.
Die Stoßspannungsprüfung ist die effektivste Methode zur Erkennung von Windungsschlüssen und Isolationsfehlern innerhalb einer Wicklung. Keine andere Prüftechnik liefert vergleichbar aussagekräftige Ergebnisse zur Wicklungs- und Isolationsqualität.
Thanks to automatic evaluation, our devices are ideal for:
- EOL Tests in highly flexible, fast series production
- Tests in the mass market and standard industry
-
High-precision tests of electric drives for automotive applications
-
Test of special electric motors, such as the electric motors used in satellites
- Quality tests in the laboratory
- Approval tests
- Fault analysis in repair
- Fault Analysis in Repair and electric motor service and repair
Key Facts:
- Surge testers from 3 kV to 50 kV
- Patented evaluation methods
- Patented Peak-to-Peak Measurement Method
- Unrivaled reliable turn-to-turn fault detection
-
Various established test methods such as the Error Area Ratio (EAR)
- Extremely fast measurement cycles for shortest cycle times
- Das Power-Duo: Stoßspannung + Teilentladung für kompromisslose Qualität
- Patented 50 Hz Pulse Frequency Technology
- The fastest partial discharge test ever
- Test motors and generators ranging from a few watts to 500 MW
- 2000 A surge current
- 125 Joule Stoßenergie
- Rise time up to 60 ns
- automatic test method switch-over
- Any number of winding and temperature Connections
- Two-channel safety function – compliant with PLe / SIL3 (MTC2, MTC3)
MotorAnalyzer3
The mobile ALL-IN-ONE professional model for your Motor service
CHECK YOUR MOTOR'S HEALTH!
For electric motor service and repair
For electric motor repair
For maintenance, servicing, and service
- Globally unique – the mobile ALL-IN-ONE test device
- AutoTest –thefastest troubleshooting
- Battery operation – Test nonstop
- Stoßspannung bis 3 kV | 0,45 Joule
- DC high voltage up to 6 kV
- Insulation up to 500 GΩ
- Polarization index and DAR
- LCR measurement
- Automatic measurement between the four relevant connection points of the three-phase motor
– three winding connections
– one housing connection (laminated core , or motor housing) - Communication with
«» PC via Bluetooth - The professional model for Motor service
MTC2 R7
Universal winding Test devices 6, 12, 15, 30, 40 and 50 kV
MTC2 winding Test systems are very compact, fully automatic high-end Test devices for a wide variety of winding goods in development, production, and Test laboratory.
For production, EOL, automation
For test laboratory, R&D, approval, certification tests
For repair, maintenance, and service
surge test
- Ultra-fast 50 measurements per second
- Phase comparison between phases
- Patented peak-to-peak measurement
Partial discharge compliant with DIN EN 60034-18:2014
- Passive or active antenna
- Conducted coupling
ohmic resistance
- Winding
- Temperature sensor
insulation resistance
- IR
- PI
- DAR
High voltage AC optional
Test connections
- Standard: 4
- Optional: 7 and more
MTC3 R2
The high-end test systems for Motor production – without limit
MTC3 winding test systems are fully automatic high-end test devices for various winding goods in development, production, and test laboratories.
For production, EOL, automation
For test laboratory, R&D, approval, certification tests
- Testing of stators, rotors, transformers and inductors
- Stoßspannungsprüfung bis 15 kV
- Fully built-in partial discharge test according to IEC 61934 and DIN EN 60034-18-41
- Resistance Measurement in " four-wire technology " with Temperature Compensation
- Insulation resistance test with automatic PI measurement
- Inductance test | LCR inductance measurement bridge
- high voltage test AC in accordance with the VDE standard
- Partial discharge at high voltage AC
- insulation test DC
- Precise four-wire resistance measurement with temperature compensation down to the µΩ rangespace
- Rotating field test with static probe
- Expansion to up to 150 connections
- Temperature sensor test for 1, 2, 3 … x sensors
VoltageAnalyzer
Präzise Stoßspannungsmessung unmittelbar an der Wicklung
For production and test laboratories.
- Direct voltage measurement on the device under test —no cable-related interference
- 3-channel precision high-frequency probe
- Super fast measurement
- High measurement resolution
- Plus partial discharge measurement with passive or active antenna
- Built-in measurement point switch-over
- Ideal for demanding tests
Good to know:
Die Stoßspannungsprüfung
Where testing takes place at the device under test .
- within the winding from turn to turn
- from winding to winding
- from phase to phase
- from the winding to the laminated core
Die Stoßspannungsprüfung ist der »Tiefe Blick in die Wicklung«. Weder mit der Hochspannungsprüfung noch mit Prüfmethoden wie zum Beispiel der ohmschen Widerstandsprüfung oder der Induktivitätsprüfung lässt sich eine derartige Prüftiefe erreichen.
Diese Fehler deckt die Stoßspannungsprüfung auf.
- Insufficient insulation clearances
- insulation weaknesses
- Inadequate dielectric strength
- incorrect number of turns
- deviating winding geometry
- enameled copper wire defects
- turn-to-turn faults
- voltage-dependent turn-to-turn faults
- phase-to-phase faults
- voltage-dependent phase-to-phase faults
- Faults to frame
- voltage-dependent Faults to frame
- layer faults
- voltage-dependent layer faults
- Problems with the laminated core
- Problems with the magnetic core
- Circuit faults
…
So funktioniert die Stoßspannung.
Prinzipiell erzeugt das Stoßspannungsprüfgerät einen Hochspannungsimpuls mit sehr hoher Flankensteilheit.

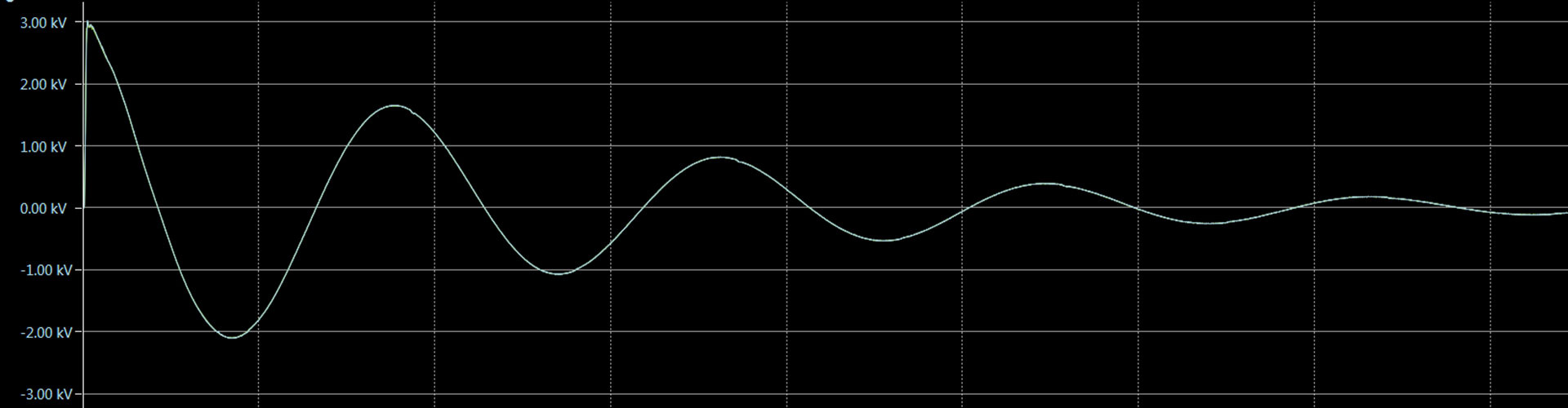

To do this, it charges the surge capacitor integrated into the test set to the desired voltage level. As soon as the TEST VOLTAGE is reached, the test set uses a very fast semiconductor switch to connect the charged capacitor to the winding under test. This results in a resonant circuit consisting of the test object’s inductance and the charged capacitor. The impulse response at the resonant circuit is a very steep voltage rise followed by the typical voltage waveform in the form of a damped oscillation.
The very rapid voltage spike creates high voltage differences between individual and/or multiple turns within the winding. If there are any weaknesses in the insulation, the brief, high voltage difference leads to discharges. These affect the voltage waveform of the damped oscillation in such a way that it visually differs from that of an intact winding.
Using an analysis method patented by SCHLEICH and various algorithms, the tester analyzes the difference between normal and abnormal voltage and current waveforms. Based on these analyses, the tester automatically determines whether a winding GO (GO) or defective (n.GO).
So wird die Stoßspannungsprüfung durchgeführt.
Whether manual, semi-automatic, or fully automatic: SCHLEICH's surge voltage testers allow you to complete any test task quickly and efficiently run.
Our devices are all designed according to the "KISS principle". That is, following the motto: »Keep It Simple and Smart«. This principle serves as a guiding theme for all SCHLEICH products.

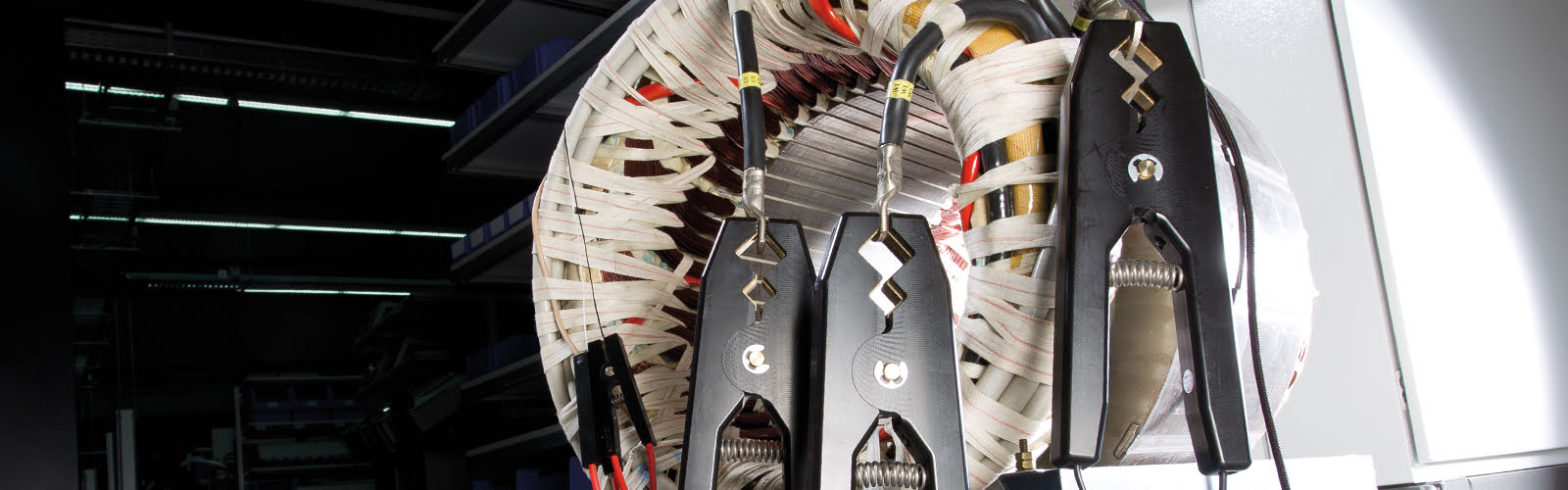

A manual test is performed by connecting Kelvin clamps to the device under test.
Für die Anforderungen von Produktionsbetrieben bieten sich eher teil- oder vollautomatisierte Stoßspannungsprüfgeräte bzw. Stoßspannungsprüfautomaten an. Hierzu sind die Prüfgeräte mit einem Relais-Umschaltfeld (Relais-Matrix) ausgestattet. Diese schalten die Stoßspannung automatisch an die gewünschten Prüfpunkte.
Test systems of this type have up to 100 test connections, depending on the application.
Sicherheitsmaßnahmen bei die Stoßspannungsprüfung beachten!
Das Arbeiten mit Stoßspannung ist nicht ungefährlich. Deshalb sind entsprechende Sicherheitsvorschriften und Maßnahmen zum Berührungsschutz unbedingt einzuhalten.

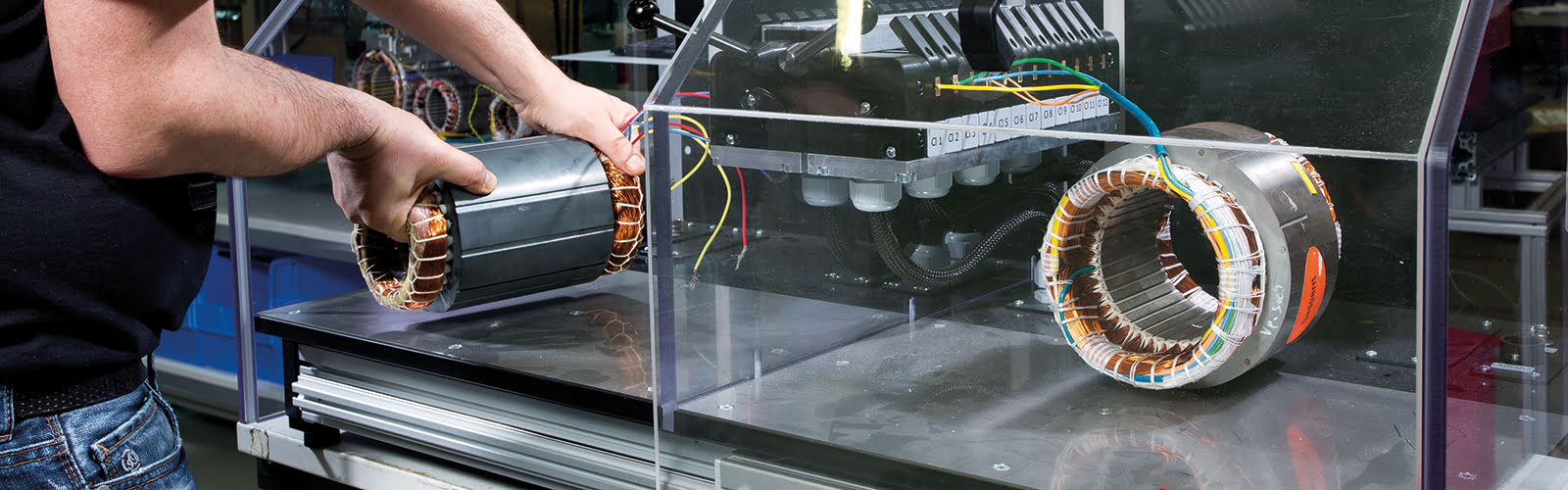

In R&Dspace and in repair work, it is often unavoidable to work on an open, unprotected device under test without built-in contact protection. In production, protective measures such as test hoods, test booths, light curtains, or barrier chains are typically used.
Die Anforderungen an ein Standard-Stoßspannungsprüfgerät.
SCHLEICH surge testers typically feature the following characteristics:
- standard-compliant testing
- High voltage slew rate
- very fast measurement technology with high resolution
- Fully automatic switch-over between the various winding terminals of the test object
- fully automatic analysis
- Patented evaluation method
- Integrated test plan and test result memory
- Development, Production, and Service – Made in Germany
SCHLEICH surge testers are based on over 30 years of experience and pioneering work. From the outset, the measurement technology was designed digitally, not analog. Fundamentally, the latest technologies are always applied.
So finden Sie das passende Stoßspannungsprüfgerät.
Sofern Sie an Ihrem Prüfobjekt ausschließlich Stoßspannungsprüfungen durchführen möchten, sind Sie mit einem Einzelprüfgerät gut beraten. Es enthält die Stoßspannungsprüfung und ohne zusätzliche Extrakosten auch immer die Isolationswiderstandsprüfung und PI-Messung.
If the device under test requires additional tests, we recommend our combination testers/multifunction testers. These allow for the integration of supplementary test methods such as partial discharge, high voltage test AC—plus partial discharge if needed—ohmic Resistance test, rotating-field testing, and other functions. The fully automatic test method switching ensures that no test leads need to be manually reconnected to the device under test during the test.
Thanks to the intuitive and convenient operation of our surge testers, every test is performed quickly, precisely, and cost-efficiently.
The SCHLEICH Product Portfolio – expect more!
Surge testers
- TEST VOLTAGE from 3,000 V to 50,000 V
- Expandable with the discharge test
- Expandable with additional test methods such as Resistance, high voltage AC, etc.
- Interfaces such as RS 232, Ethernet / LAN, USB for PC communication
- 24 V digital I/O for communication with the PLC
- Expandable to Industrial Ethernet and fieldbus systems
- Unlimited storage space for test plans and test results
- All parameters determined via the software
Custom test devices and systems
- Single and Multifunction Test Devices
- Relay matrices scalable from 2 … 100 terminals
- Complete test workstations
- Automatic EOL workstations
- systems engineering including test cell
All-round Service
- Professional consultation with technical expertise
- Thorough initial Commissioning
- Regular certified calibration
- After-sales support by our service team
- Service by phone, via remote maintenance, or on-site
- Tailored training courses
- SCHLEICH.CARE.PREMIUM
