Protective conductor resistance test devices

With SCHLEICH protective conductor resistance testers, any testing task can be performed quickly and efficiently run —whether manually, semi-automatically, or fully automatically.

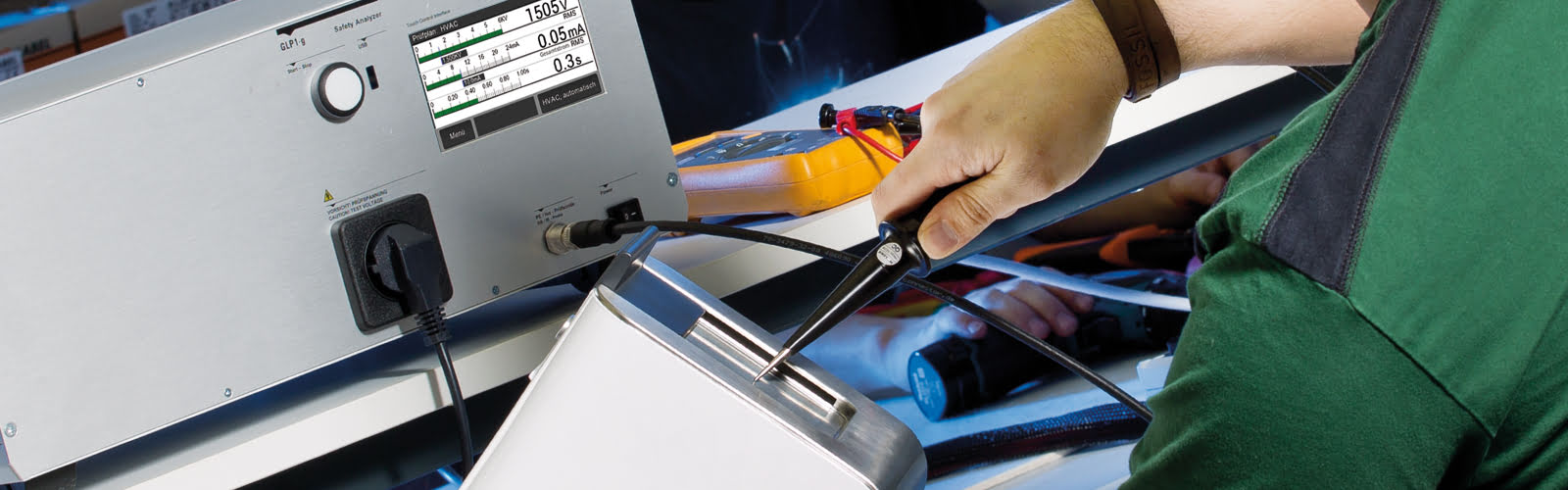

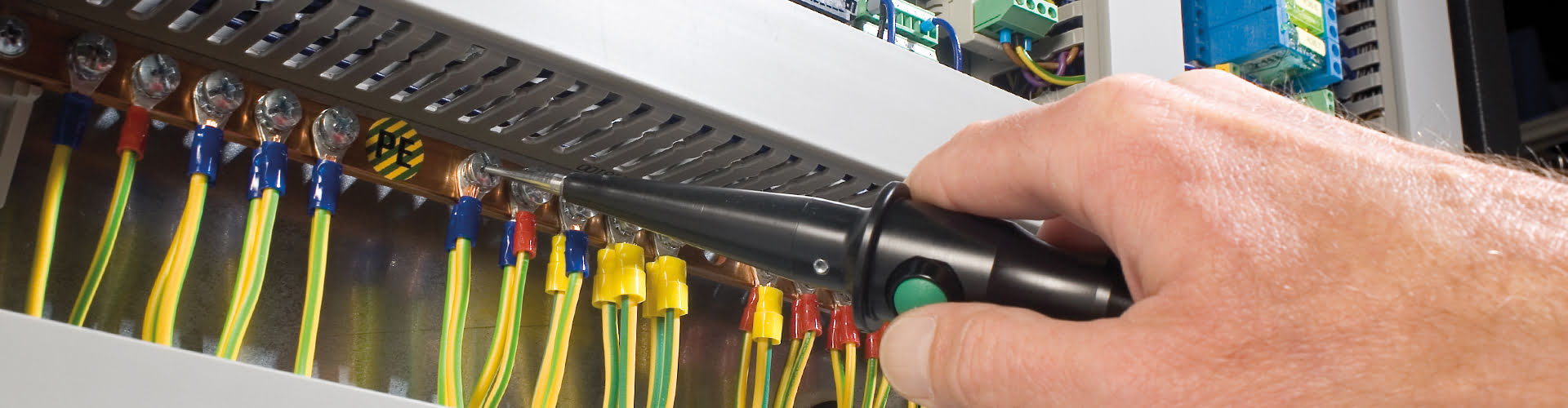

Manual tests are performed using a protective conductor test probe. To do this, the test tip is guided by hand from test point to test point. A typical application is the testing of electrical products, control cabinets, and machines in accordance with the Machinery Directive EN 60204.

Partially or fully automated protective conductor resistance testers or automatic testers are suitable for the requirements of manufacturing facilities provide . For this purpose, the testers are equipped with a relay switching panel (relay matrix). This automatically routes the test currents to the desired test points.

Trust in technology that sets standards – for compliant and efficient protective conductor tests.

Key Facts:

  • Test devices with Test currents from 1 A to 500 A AC/DC
  • Electronic Test current control
  • Four-wire measurement
  • Manual and automated test sequences
  • Expandable for complex devices under test with multiple test points
  • Relay matrices with up to hundreds of test points
  • Ideal for series production tests and EOL tests
  • Ideal for type approval tests and quality assurance
  • Test tips and Kelvin clamps for various applications
  • Special solution for wind turbines
  • Special contacting for rail vehicles

HandHeld

Compact, mobile protective earth conductor test device

AC

  • 1 – 10 A
  • 6/12 V
  • 0 – 20 Ω

Ideal for

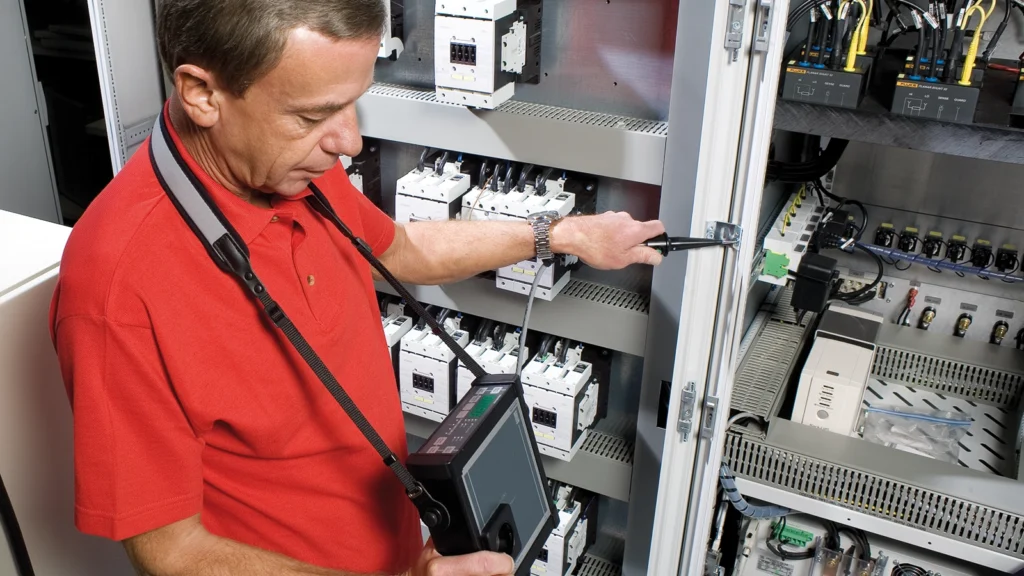

  • Maintenance of medical products such as X-ray systems, CTs, or MRIs
  • Lightning protection inspection on wind turbines
  • manual tests with test tips
  • manual testing with test socket
  • on-site mobile use
    • Low weight
    • Portable and mobile
  • Communication with
    PC

View product

GLP1-g protective conductor resistance test devices

Protective conductor resistance test devices with AC or DC | 5 device variants

AC

  • 10 – 75 A
  • 6/12 V
  • 0 – 1.2 Ω @ 10 A

DC

  • 40 A
  • 12 V
  • 0 – 1.2 Ω @ 10 A

Ideal for

  • Testing in an test cover test booth
  • Fully automatic test stations
  • OEMs, system integrators
  • Communication with
    «» PC
    «» PLC
    «»LabVIEW®

View product

How to find the suitable protective conductor resistance test device.

The number of protective earth resistance test devices available on the market is large, and the quantity of configurable features is overwhelming.

If you intend to use your device under test exclusively for protective conductor tests with AC or DC run , a single-function tester is the best choice. It includes only the test method “protective conductor resistance.”

If the device under test also requires a more comprehensive safety and functional check, we recommend our multifunction testers.

Individual test devices

Single- protective earth resistance test -resistance testers are ideal for applications where only the is required.



  • Suitable for:
    • Manual testing with test tips
    • Test currents from 1 A to 500 A AC/DC
    • Automation
    • Laboratories
  • Advantages:
    • Low acquisition costs
    • Easy operation
    • Compact design
  • Disadvantage:
    • For multiple test methods, a separate test device is needed for each.

Multifunction test devices

provide Multifunction Testers: Advantages for applications that require multiple test methods to be combined in a single device .



  • Typical combinations:
    • protective conductor test + high voltage test + insulation test +  function test
  • Ideally suited for:
    • End-of-line test benches
    • Series production
    • Automation
    • Laboratories
  • Advantages:
    • Higher acquisition costs, but more economical than multiple single test devices.
    • Central control and documentation
    • Higher efficiency through fast automated test sequences.
    • Integration of automatic test method switch-over
    • Integration of automatic measurement channel switch-over
    • High flexibility
    • More space-saving than multiple individual test devices

Good to know:

The protective earth resistance test

The " protective earth resistance test "—also known worldwide as the PE test or GB test (Ground Bond)—is one of the most important test methods in existence.

Electrical devices are divided into three protection classes:


Protection Class Protection by Test required
I protective earth conductor yes
II double or reinforced insulation No
III Extra-low voltage or safety extra-low voltage No

Equipment withprotection class Iposes a high level of hazard. Therefore, theprotective conductor test , as required by the standards, isabsolutely necessary.

In an electrical appliance with Protection Class I, the earth leakage circuit breaker ( protective earth conductor ) serves to prevent dangerous contact voltages on the metal housing parts of the appliance. Therefore, the earth leakage circuit breaker ( protective earth conductor ) must function absolutely reliably in these products. It connects the metal housing parts to earth. In the case of a defective electrical appliance with an insulation fault, even the upstream residual-current device (RCD) will not trip if the protective earth conductor is interrupted. Consequently, the defective electrical appliance would pose a very high risk. For this reason, the protective conductor test is included in nearly all testing standards (e.g., VDE, EN, IEC, UL …).

Where testing takes place at the device under test .

Typically, electrical products are connected to the power grid via power cords with plugs or terminal blocks. The " protective conductor test " therefore occurs between the PE of the power plug or the PE-connection clamp , and all connected metallic housing parts of the electrical product.

If an electrical appliance has multiple metal housing parts connected to the protective earth conductor , the proper functioning of the protective conductor must be verified individually for each housing part. If protective conductor connections are no longer accessible on the fully assembled electrical appliance, these connections must be tested during intermediate inspections while the appliance is still in production.



protective conductor test uncovers these errors.

  • Interrupted protective earth conductor
  • protective earth conductor s with too high an impedance, poor contact resistance
  • Intermittent connections or poor terminal points of the protective earth conductor



How is the " protective earth conductor " tested?

In most cases, the protective conductor is tested based on its measuredohmic resistance. Alternatively, the voltage drop across the protective earth conductor can also be measured.

To determine the resistance or voltage drop, a high minimum test current must flow through the protective earth conductor , depending on the test standard. The test device sets the test current to the specified level and regulates it to a constant value.

The high- Test current s are intended to simulate a load on the protective conductor in order to “burn away” any weak connections that may be present. However, with typical test durations of one second, this usually does not succeed in practice, since it is virtually impossible for the contacts to heat up enough to burn away the weak connections within that time.

For precise protective conductor testing, the four-wire technology (also known as a Kelvin measurement, 4L, or 4W) is extremely important. Only this method reliably allows for the precise measurement of smallresistances in the mΩ rangespace measurement . The tester thus determines four-wire technology the voltage drop across the protective earth conductor and calculates the protective conductor resistance based on Ohm’s law.



The "good/bad" criteria.

Upper limit values for ohmic resistance or voltage drop are defined in standards. These limit values must not be exceeded under any circumstances.



protective conductor test AC or DC?

Test current , in most cases, is alternating current. However, in some applications—for example, when using long coiled connection cables—direct current can also be advantageous.

This is how the " protective conductor test " is conducted.

Whether manual, semi-automatic, or fully automatic: with SCHLEICH protective conductor testers, any testing task can be completed quickly and efficiently run.

Our test devices are all designed according to the "KISS principle". Following the motto: »Keep It Simple and Smart«. This principle serves as a guiding theme for all SCHLEICH products!

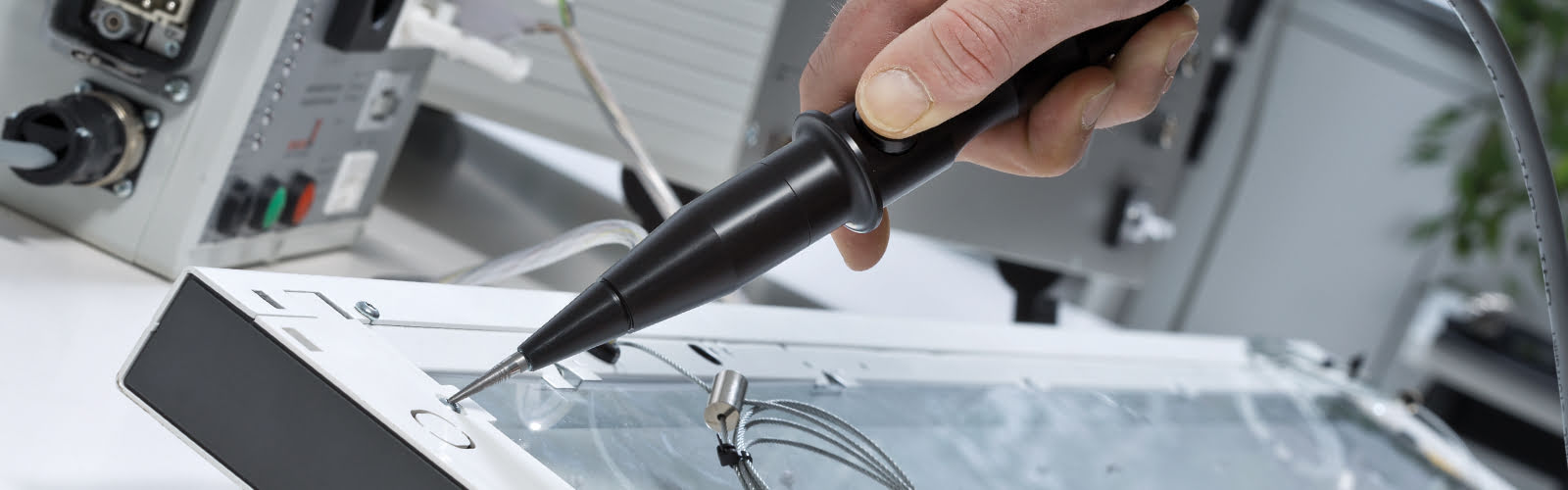

A manual test is performed using a protective conductor test probe. To do this, the operator manually moves the test tip from test point to test point. Despite the manual process, the test can be documented accurately. A typical application is the inspection of electrical products, control cabinets, and machines in accordance with the Machinery Directive EN 60204.

Partially or fully automated protective conductor testers or automatic protective conductor testers are suitable for the requirements of manufacturing facilities provide . For this purpose, the testers are equipped with a relay switching panel (relay matrix). These automatically route the test currents to the desired test points.

Test systems of this type have up to 1,000 test connections, depending on the application.



The requirements for a standard protective conductor test device.

Many national and international standards requiretest currents ranging from 10 to 30 A. These test currents can be set in steps on the tester. In addition, SCHLEICH also offers protective conductor testers ranging from1 A to 500 A AC/DCTest current .

SCHLEICH protective conductor test devices are based on over 30 years of experience. From the beginning, the measurement technology was not analog but always designed digitally. Fundamentally, the latest technologies are always applied.



This is how you find the right protective conductor test device.

The number of protective conductor test devices available on the market is large, and the quantity of configurable features is overwhelming.

If you intend to use your device under test exclusively for protective conductor tests with AC or DC run , a single-function tester is the best choice. It includes only the test method “protective conductor resistance.”

If the device under test also requires a more comprehensive safety and functional check, we recommend our combination testers/multifunction testers. These allow you to conveniently combine various test methods—such as protective earth conductor, insulation, and high voltage test —into a single tester. The fully automatic test method switching integrated into the tester ensures that no test leads need to be manually reconnected to the device under test during the test.

In addition, it is common to find a combination of safety tests and comprehensive functional tests. During the " function test " test, the test device also supplies the " device under test " with operating voltage to verify its electrical operating characteristics.

Thanks to the intuitive and convenient operation of SCHLEICH protective conductor resistance test devices, every Test is performed quickly, precisely, and cost-effectively.
