GLP2-BASIC

Protective conductor, insulation, high voltage, leakage current and function tester

With the GLP2-BASIC multi-tester you can test a wide variety of electrical products according to the latest state of the art. With a large selection of instrument variants we offer you solutions for the most diverse testing tasks and requirements.

Product consultant

You need a personal product advice?
Please use our direct contact:
+49 2372 901 25 40
Email request

Key-Facts

Testers for HVAC, HVDC, IR, PE or leakage – in other words, with only one integrated test method.

„All in one” testers with up to 21 integrated test methods plus automatic switch over.

  • PE/ ground testers up to 30 A
  • insulation resistance testers up to 6 kV
  • high-voltage testers AC up to 6 kV
  • high-voltage testers DC up to 6 kV
  • functional test up to 16 A
  • traceable calibration certificate included
  • short lead time or available on stock
  • all test methods fully-electronic controlled
  • fully- and semi automatic controlled tests
  • manual tests
  • PLe, SIL3, Kat4 Safety circuit (depending on device variant and degree of risk)
  • high process reliability
  • integrated „SPS-functionality” with freely programmable script language
  • intuitive operation concept with 7″ touch display plus HDMI-interface
  • additional input with keyboard and mouse possible
  • reading of various 1D- and 2D barcodes
  • Ethernet, WLAN, USB and serial interface
  • communication via RS232 and/or SCPI-standard-commands
  • database for test sequences and test results
  • user administration
  • protocon print-out
  • freely configurable label print for thermal transfer printers
  • several label printers controllable
  • full network connectivity
  • possibility for remote maintenance or remote calibration
  • remote control option for automation
  • perfect for OEMs

Variants

39 Device variants for solving your testing task.

Please select the desired test method:

List view
Compare

GLP2-BASIC 320 | Test method » HV AC

type of testeronly high-voltage testers
high voltage AC0–6 kV˜ max.3 mA safety
safety concepttwo-channel
two-hand startpossible
test terminalsHV1, HV2
test connectionstest pistols
 test socket at the rear, 10-pole, optional
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 330 | Test method » HV AC

type of testeronly high-voltage testers
high voltage AC0–6 kV˜ max. 100 mA
key switchfor HV-release
safety concepttwo-channel
two-hand startpossible
test terminalsHV1, HV2
test connectionstest pistols
 test socket at the rear, 10-pole, optional
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 440 | Test method » HV DC

type of testeronly high-voltage testers
high voltage DC0–6 kV ˭ max. 100 mA
safety concepttwo-channel
two-hand startpossible
test connectionstest socket at the rear, 10-pole, optional
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 530 | Test methods » HV AC· HV DC

type of testeronly high-voltage testers
 only safety testers ALL-IN-1
high voltage AC0–6 kV˜ max. 100 mA
high voltage DC0–6 kV ˭ max. 100 mA
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest pistols
 test socket at the rear, 10-pole, optional
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 820 | Test methods » IR · HV DC

type of testeronly safety testers ALL-IN-1
insulation0–1 kV ˭ max. 10 GΩ
high voltage DC0–6 kV ˭ max. 4 mA
safety concepttwo-channel
test terminals
test connectionstest pistols
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 920 | Test methods » IR · HV AC · HV DC

type of testeronly safety testers ALL-IN-1
insulation0–1 kV ˭ max. 10 GΩ
high voltage AC0–6 kV˜ max.3 mA safety
high voltage DC0–6 kV ˭ max. 4 mA
safety concepttwo-channel
test terminals
test connectionstest pistols
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 930 | Test methods » IR · HV AC · HV DC

type of testeronly safety testers ALL-IN-1
insulation0–1 kV ˭ max. 10 GΩ
high voltage AC0–6 kV˜ max. 100 mA
high voltage DC0–6 kV ˭ max. 4 mA
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest pistols
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 940 | Test methods » IR · HV AC · HV DC

type of testeronly safety testers ALL-IN-1
insulation0–1 kV ˭ max. 10 GΩ
high voltage AC0–6 kV˜ max. 100 mA
high voltage DC0–6 kV ˭ max. 100 mA
safety concepttwo-channel
two-hand startpossible
test connectionstest socket at the rear, 10-pole, optional
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 1030 | Test methods » GB · IR · HV AC

type of testeronly safety testers ALL-IN-1
PE/GB1–30 A˜ 6/12 Veff
insulation0–1 kV ˭ max. 10 GΩ
high voltage AC0–6 kV˜ max.3 mA safety
safety concepttwo-channel
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 1040 | Test methods » GB · IR · HV AC

type of testeronly safety testers ALL-IN-1
PE/GB1–30 A˜ 6/12 Veff
insulation0–1 kV ˭ max. 10 GΩ
high voltage AC0–6 kV˜ max. 100 mA
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest probe
 test socket at the rear, 10-pole, optional
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 1041 | Test methods » GB · IR · HV AC

type of testeronly safety testers ALL-IN-1
PE/GB1–30 A˜ 6/12 Veff
insulation0–1 kV ˭ max. 10 GΩ
high voltage AC0–6 kV˜ max. 100 mA
safety concepttwo-channel
test terminals
test connectionstest probe
 test pistols
deliveryin 5 business days

GLP2-BASIC 1130 | Test methods » GB · IR · HV DC

type of testeronly safety testers ALL-IN-1
PE/GB1–30 A˜ 6/12 Veff
insulation0–1 kV ˭ max. 10 GΩ
high voltage DC0–6 kV ˭ max. 4 mA
safety concepttwo-channel
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 1131 | Test methods » GB · IR · HV DC

type of testeronly safety testers ALL-IN-1
PE/GB1–30 A˜ 6/12 Veff
insulation0–1 kV ˭ max. 10 GΩ
high voltage DC0–6 kV ˭ max. 4 mA
safety concepttwo-channel
test terminals
test connectionstest probe
 test pistols
deliveryin 5 business days

GLP2-BASIC 1220 | Test methods » PE · IR · HV AC · HV DC

type of testeronly safety testers ALL-IN-1
PE/GB1–30 A˜ 6/12 Veff
insulation0–1 kV ˭ max. 10 GΩ
high voltage AC0–6 kV˜ max.3 mA safety
high voltage DC0–6 kV ˭ max. 4 mA
safety concepttwo-channel
test connectionstest socket, country-specific
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 1230 | Test methods » GB · IR · HV AC · HV DC

type of testeronly safety testers ALL-IN-1
high voltage AC0–6 kV˜ max. 100 mA
high voltage DC0–6 kV ˭ max. 4 mA
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest probe
 test socket at the rear, 10-pole, optional
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 1231 | Test methods » GB · IR · HV AC · HV DC

type of testeronly safety testers ALL-IN-1
PE/GB1–30 A˜ 6/12 Veff
insulation0–1 kV ˭ max. 10 GΩ
high voltage AC0–6 kV˜ max. 100 mA
high voltage DC0–6 kV ˭ max. 4 mA
safety concepttwo-channel
test terminals
test connectionstest probe
 test pistols
connection boxpossible
deliveryin 5 business days

GLP2-BASIC 1232 | Test methods » GB · IR · HV AC · HV DC

type of testeronly safety testers ALL-IN-1
PE/GB1–30 A˜ 6/12 Veff
insulation0–1 kV ˭ max. 10 GΩ
high voltage AC0–6 kV˜ max. 100 mA
high voltage DC0–6 kV ˭ max. 4 mA
safety concepttwo-channel
test terminals
test connectionstest probe
 test pistols
deliveryin 5 business days

GLP2-BASIC 1240 | Test methods » GB· IR · HV AC · HV DC

type of testeronly safety testers ALL-IN-1
high voltage AC0–6 kV˜ max. 100 mA
high voltage DC0–6 kV ˭ max. 100 mA
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest probe
 test socket at the rear, 10-pole
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 1320 | Test methods » GB · IR · Fct

type of testeronly safety & function testers ALL-IN-1
PE/GB1–30 A˜ 6/12 Veff
insulation0–1 kV ˭ max. 10 GΩ
function AC 1-phase0–250 V˜ max. 5 A
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test pistols
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 1322 | Test methods » GB · IR · Fct AC · Fct DC

type of testeronly safety & function testers ALL-IN-1
PE/GB1–30 A˜ 6/12 Veff
insulation0–1 kV ˭ max. 10 GΩ
function AC 1-phase0–250 V˜ max. 5 A
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
deliveryin 5 business days

GLP2-BASIC 1330 | Test methods » GB · IR · Fct

type of testeronly safety & function testers ALL-IN-1
PE/GB1–30 A˜ 6/12 Veff
insulation0–1 kV ˭ max. 10 GΩ
function AC 1-phase230 V˜ max. 16 A
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
deliveryin 5 business days

GLP2-BASIC 1420 | Test methods » GB · IR · LC · Fct

type of testeronly safety & function testers ALL-IN-1
PE/GB1–30 A˜ 6/12 Veff
insulation0–1 kV ˭ max. 10 GΩ
function AC 1-phase0–250 V˜ max. 5 A
leakage current1-phase
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 1430 | Test methods » GB · IR · ELC · Fct

type of testeronly safety & function testers ALL-IN-1
insulation0–1 kV ˭ max. 10 GΩ
function AC 1-phase230 V˜ max. 16 A
leakage current1-phase
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 1520 | Test methods » GB · IR · HV AC · Fct

type of testeronly safety & function testers ALL-IN-1
insulation0–1 kV ˭ max. 10 GΩ
high voltage AC0–6 kV˜ max.3 mA safety
function AC 1-phase0–250 V˜ max. 5 A
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 1530 | Test methods » GB · IR · HV AC· Fct

type of testeronly safety & function testers ALL-IN-1
function AC 1-phase0–250 V˜ max. 5 A
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 1540 | Test methods » GB · IR · HV AC · Fct

type of testeronly safety & function testers ALL-IN-1
insulation0–1 kV ˭ max. 10 GΩ
high voltage AC0–6 kV˜ max.3 mA safety
function AC 1-phase230 V˜ max. 16 A
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 1550 | Test methods » GB · IR · HV AC · Fct

type of testeronly safety & function testers ALL-IN-1
high voltage AC0–6 kV˜ max. 100 mA
function AC 1-phase230 V˜ max. 16 A
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest probe
 test socket at the rear, 10-pole
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 1620 | Test methods » GB · IR · HV AC · LC · Fct

type of testeronly safety & function testers ALL-IN-1
function AC 1-phase0–250 V˜ max. 5 A
leakage current1-phase
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 1630 | Test methods » GB · IR · HV AC · LC · Fct

type of testeronly safety & function testers ALL-IN-1
function AC 1-phase0–250 V˜ max. 5 A
leakage current1-phase
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest probe
 test socket at the rear, 10-pole
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 1640 | Test methods » GB · IR · HV AC · ELC · Fct

type of testeronly safety & function testers ALL-IN-1
function AC 1-phase230 V˜ max. 16 A
leakage current1-phase
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 1650 | Test methods » GB · IR · HV AC · ELC· Fct

type of testeronly safety & function testers ALL-IN-1
function AC 1-phase230 V˜ max. 16 A
leakage current1-phase
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest probe
 test socket at the rear, 10-pole, optional
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 1720 | Test methods » GB · IR · HV DC · Fct

type of testeronly safety & function testers ALL-IN-1
insulation0–1 kV ˭ max. 10 GΩ
high voltage DC0–6 kV ˭ max. 4 mA
function AC 1-phase0–250 V˜ max. 5 A
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

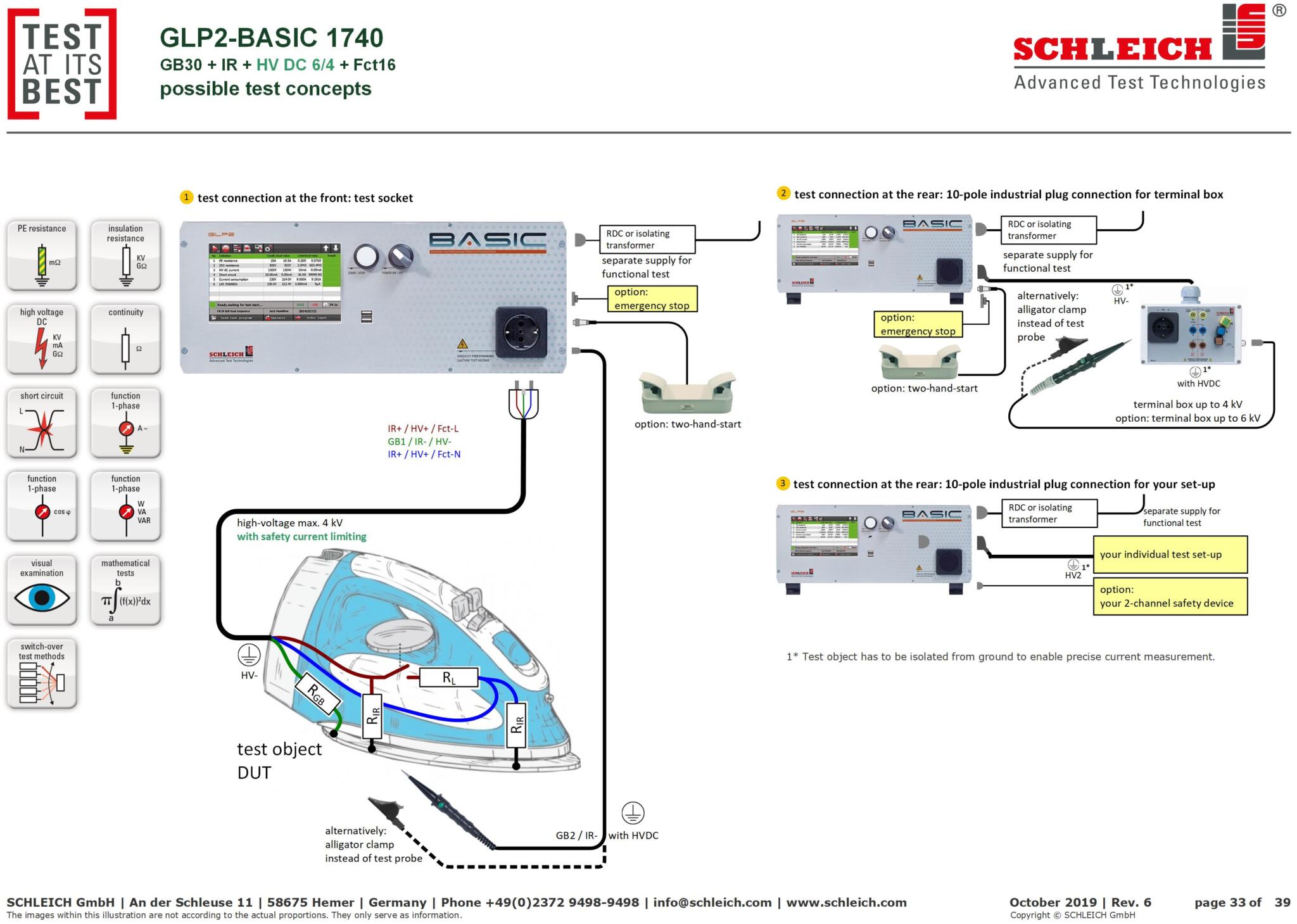

GLP2-BASIC 1740 | Test methods » GB · IR · HV DC · Fct

type of testeronly safety & function testers ALL-IN-1
insulation0–1 kV ˭ max. 10 GΩ
high voltage DC0–6 kV ˭ max. 4 mA
function AC 1-phase230 V˜ max. 16 A
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 1820 | Test methods » GB · IR · HV DC · LC · Fct

type of testeronly safety & function testers ALL-IN-1
function AC 1-phase0–250 V˜ max. 5 A
leakage current1-phase
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 1840 | Test methods » GB · IR · HV DC · ELC · Fct

type of testeronly safety & function testers ALL-IN-1
function AC 1-phase230 V˜ max. 16 A
leakage current1-phase
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 1920 | Test methods » GB · IR · HV AC · HV DC · ELC · Fct

type of testeronly safety & function testers ALL-IN-1
function AC 1-phase0–250 V˜ max. 5 A
leakage current1-phase
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 1930 | Test methods » GB · IR · HV AC · HV DC · ELC · Fct

type of testeronly safety & function testers ALL-IN-1
function AC 1-phase0–250 V˜ max. 5 A
leakage current1-phase
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
test coverpossible
automation
deliveryin 5 business days

GLP2-BASIC 1940 | Test methods » GB · IR · HV AC · HV DC · ELC · Fct

type of testeronly safety & function testers ALL-IN-1
function AC 1-phase230 V˜ max. 16 A
leakage current1-phase
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

GLP2-BASIC 1950 | Test methods » GB · IR · HV AC · HV DC · ELC · Fct

type of testeronly safety & function testers ALL-IN-1
function AC 1-phase230 V˜ max. 16 A
leakage current1-phase
safety concepttwo-channel
two-hand startpossible
test terminals
test connectionstest socket, country-specific
 test probe
 test socket at the rear, 10-pole, optional
connection boxpossible
automation
deliveryin 5 business days

If you haven’t found the perfect test device yet, please do not hesitate to contact us.

We would be pleased to help you find a custom solution:

Product consultant

Product consultant

Are you looking for a personal consultation?

Please contact us directly: +49 2372 901 25 40

Or simply send us your questions via e-mail.

E-mail inquiry

Description

The new standard!

All kinds of electronic products may be inspected according to the latest state-of-the-art single- and multitester GLP2-Basic. To solve a variety of different test taks and to meet your individual requirements, you can choose from over 45 different GLP2-BASIC models.

Thanks to the intelligent features, the tester covers all application fields in today´s safety- and functional test technology. It is ideally suited for production, laboratory, test field, quality management, automation and more.

The variety of features, e.g. to create your own test sequences, to enter your own data as serial number, result storage, freely configurable label print out, barcode function and many more leave nothing to be desired.

With regard to cost savings and environmental awareness, for many companies the increase of energy efficiency is an essential goal to be pursued.  In energy-intensive sectors like the production, SCHLEICH supports you with sustainable and eco-friendly technology. For “clean” results”!

To offer perfect experience our engineers integrate only the latest technology in our testers. That is why SCHLEICH, as leading innovator, was the first manufacturer in the market who installed user-friendly touch screens in the testers.

Ergonomically-optimized workplaces may increase performance to a large extent.  To optimize the individual workplace, SCHLEICH entirely revolutionized the housing concept.

Whether sitting or standing, small or tall person- the ergonomic housing design sets new standards for fatigue-free work. Thus, looking at the display, entering data as well as connecting the test object at the test socket is always perfectly-suitable for the operator.

Enormous flexibility and fast technology, combined in ergonomic design – SCHLEICH offers safety- and functional test technology which inspires!


Technology

Automation and Interfaces.

  • digital I/O, (input/output 24 V to PLC)
  • RS232 via SCHLEICH communication protocol
  • LAN via SCHLEICH communication protocol
  • LAN via SCPI commands
  • LAN via TCP/IP socket communication (individual special software required)
  • PROFIBUS
  • PROFINET
  • EtherCAT
  • CANopen
  • individual special solution …



Benefits of measurement technology at a glance.

Measuring technology

  • precise and fast measurements
  • TRMS » true R.M.S. measurement
  • R.M.S.- and peak value measurement
  • effective and apparent current measurement, cosφ
  • effective and apparent power measurement

PE/ Ground AC

  • PE/ Ground resistance, voltage drop
  • 10-30 A AC, adjustable, electronically controlled
  • 6-12 V AC
  • 0-1200 mΩ

Insulation DC

  • insulation resistance
  • 30-1000 V DC, adjustable, electronically controlled
  • max. 3 mA
  • 100 KΩ-10MΩ

High-voltage AC

  • 50-6000 V AC, adjustable, electronically controlled
  • with safety current limiting max. 3 mA
  • without safety current limiting max. 100 mA
  • incl. ARC-detection

High-voltage DC

  • 50-6000 V DC, adjustable, electronically controlled
  • with safety current limiting max. 4 mA
  • without safety current limiting max. 100 mA

Function 5 A

  • 12-260 V AC,adjustable, electronically controlled
  • max. 5 A
  • max. 1300 W, 1300 VA, 1300 VAR
  • incl. short-circuit test

Leakage current, nominal current 5 A

  • according to standard EN60990 & EN60601 & UL-measruing circuits
  • R.M.S., peak value, DC-/AC-share
  • 1 μA – 30 mA

Function 16 A

  • 12-260 V AC, external supply
  • max. 16 A
  • max. 4200 W, 4200 VA, 4200 VAR
  • incl. short-circuit test

Equivalent leakage current, nominal current 16 A

  • 10 μA-30 mA
  • test voltage 40 V AC
  • conversion to 230 V AC

Resistance

  • 1 Ω-100 kΩ



⇒ More details available under Download.


Applications

Test bench – Repair station- Laboratory | Manual inspection

SCHLEICH_GLP2_BASIC Labatory

The GLP2-BASIC tester is immediately ready to perform your measurements. By means of the unique manual mode, all integrated test methods may directly be applied. There is no need to generate a test sequence in advance! You only select the requested test method and start the test.

Similar to a multimeter, the test results are displayed on the tester´s screen. Thus, the detailed evaluation of your test object is immediately possible.

Even long-term analyses, with a duration of several hours, days or even weeks may be run in this operating mode.


Production| Semi-automatic inspection

SCHLEICH_GLP2_BASIC_serial production

Typical tests in production are either performed manually with test proces and/ or fully-automatic. Thanks to the convenient user guidance the GLP2-Basic tester offers perfect testing conditions for these applications.
For the inspection of different test objects you can save an almost unlimited number of test sequences in the GLP2-Basic tester which can be opened and started by using the touch display, keyboard or barcode. If requested, the tester generates a label directly after the end of a test.
Furthermore a great number of order data may be entered, which can be printed on the SCHLEICH-standard test report in addition to the test results.


Serial production| Fully-automatic inspection

SCHLEICH_GLP2-BASIC_serial production

The GLP2-BASIC may be easily integrated in your production line. The tester´s dimensions are based on a 19″-housing, which means that it perfectly fits in your plant. Additional, flexible interfaces allow an entire remote control. A connection to a master PC or a PLC may easily be established.
For the inspection of different kinds of test objects you can save a great number of test sequences, which can be opened and started by the interface before the test is started.
All test results are retrievable by means of the interface and may be saved by the master PC in a central database. Furthermore it is possible to save the test resutls locally on the tester or directly in the computer network.
For even more flexibility we also recommend the GLP2-ce-MODULAR tester. Both tester classes have successfully been integrated in our system solutions.


Accessories

editor&printer

PC-Software for editing test sequences and for storing and printing test results.
  • creating test sequences centrally in the network
  • storing test results in the network
  • evaluation and printout

read more

analyzer

PC-Software for statistical analysis of test results
  • in-depth test result analysis
  • production online monitoring
  • informative statistics-report printout

read more

Two-Hand Operation

Protection against electrical hazards
  • dual-circuit safety with BG-approval
  • solid and stable
  • 2 different models

read more

Connection boxes

Connection panel for connecting your device under test
  • 1, 2, 3 or 4 test sockets for different country standards
  • quick pressure clamps for single leads
  • 4 mm laboratory sockets
  • high current socket for protective conductor test probe
  • for single-phase and three-phase test objects
  • customized solutions

read more

comBOX

Connect luminaires, test, dim, parameterize...
  • for LED and tube lights
  • integrated interfaces
  • DALI, DSI, Analog, Touch/Push, DMX, NFC, und more …
  • optimized test functions for the lighting industry

read more

Black boxes

Dummy test used for standardized functionality control
  • for daily inspection
  • universal blackboxes
  • factory calibration, also according to DAkkS

read more

Warning lights

Warning and indication of hazardous test voltage
  • warning of hazardous test voltage
  • only required for touchable test objects
  • not necessary when test cover is used

read more

High-voltage test pistols

Safe testing with high voltage
  • for 6, 10 or 12 KV AC/DC
  • with integrated start switch
  • optional with 4-wire technology (4W)

read more

Test Probes

For manual PE, insulation resistance and leakage current tests
  • built-in start button
  • built-in 3-color LED

read more

Barcode Scanner

Scanning of serial numbers, product types, production specifications, ...
  • various 1D & 2D-barcode scanners
  • reading of order data, operator names, serial numbers and more

read more

Label Printers

Label printing of type plates, device and test result decals, ...
  • various thermal transfer printers
  • printout with order data, serial number, and more

read more

Single Test Covers

Testing with protection against accidential contact
  • various sizes
  • ergonomic – smooth-running – versatile
  • robust industrial quality – long service life
  • up to Performance Level PLe
  • built-in result lights
  • plenty of space for adapter installations
  • optional: automatic opening – guard locking …

read more

Test Cabins

Testing with protection against accidential contact
  • with safety door or roller shutter
  • for large or bulky test objects
  • suitable for pallet trolleys
  • various sizes
  • robust industrial quality – long service life
  • up to Performance Level PLe
  • integrated door locking
  • custom solutions …

read more

Safety-Light Curtains

Testing without protection against accidental contact
  • 1-, 2-, 3- or 4-sided open and monitored
  • two-channel monitoring of safety
  • for large or bulky test objects
  • accessible by pallet jack
  • marking of the approved test area
  • installation of contacts and clamps
  • various sizes
  • custom solutions …

read more

Custom-made test covers

Test covers – individually designed and crafted to meet your specifications
  • individual customer-specific solutions of any kind, application and size

read more

Test facilities

Testing with protection against accidential touch
  • individual special solutions
  • multiple access doors
  • for large or bulky test objects
  • passable with fork lift truck
  • robust industrial quality – long service life
  • up to Performance Level PLe – evaluation with safety PLC
  • several emergency stop buttons and warning lights
  • integrated door locking …

read more

Test Tables

Individually designed and custom-made.
  • professional test tables:
  • according to BG-guidelines
  • customized for your test task

read more

Roller tables

Mobile test equipment use in your shop floor
  • mobility at testing
  • perfect for workshop applications
  • ergonomic design with storage space

read more

Safety Barriers

For securing the testing area
  • mobile workplace protection
  • with integrated emergency stop, warning lights
  • built-in 2-hand start

read more

Result Lights

Test result pass or fail
  • what is the test result?
  • green: go – pass – OK
  • red: no go – fail – not OK

read more

Foot Switch

Starting a test - Confirming a query
  • starting a test
  • confirming a query

read more

Luster terminal adapters

Contacting of 2-, 3- and 5-pole luster terminals
  • fast contacting with locking
  • up to 16 A

read more

Calibration Resistors

High precision for verifying measurement accuracy
  • precision resistors for the annual calibration
  • low drift
  • factory calibration
  • DAkkS calibration (optional)

read more

High-Voltage Relays

Switching and disconnecting high voltages safely
  • high-voltage relays
  • changeover matrixes
  • safe isolation
  • with single or double changeover contacts
  • SPDT “Single Pole Double Throw”
  • for rail mounting DIN50022
  • system components for DIY

read more

High-Voltage Cables

Safe conducting and distribution
  • for a variety of applications
  • cables up to 100 kV

read more

For further information please do not hesitate to contact our technical sales under:


print preview

Product comparison





type of tester
PE/GB
insulation
high voltage AC
high voltage DC
function AC 1-phase
function AC 3-phase
leakage current
luminaire test
key switch
safety concept
two-hand start
test terminals
test connections
connection box
test cover
automation
database
test plans
test results
communication
test report print-out
label print-out
scanner port
password protection
user management
SmartCalibration Ready
operating system
Operating System Technology Package
display
display Technology Package
delivery



Abbildung GLP2-BASIC GLP2-BASIC
read more
Abbildung GLP2-MODULAR GLP2-MODULAR
read more
Abbildung GLP2-Technologiepaket GLP2-Technology Package
read more
Abbildung HandHeld Abbildung GLP1-g Abbildung GLP2-BASIC Abbildung GLP2-MODULAR Abbildung GLP2-Technologiepaket Abbildung GLP3
HandHeld

GLP1-g

GLP2-BASIC

GLP2-MODULAR

GLP2-Technology Package

GLP3


portable – lightweight – PE test up to 10 A AC – insulation test up to 1,000 V – carrying strap – transport case – outdoor – PC software …

compact standard tester – up to 9 test methods in one device – table-top unit or 19″ rack – VDE/EN/UL – manual & automated testing – production – automation – laboratory – QA – service – PC software …

compact standard tester – up to 21 test methods in one unit – table-top unit or 19″ rack – VDE/EN/UL … – manual & automated testing – production – automation – laboratory – QA – network – protocol & label printing – Windows®

modular – customer-specific – VDE/EN/UL… – manual & automatic – production – automation – laboratory – QA – network – protocol & label printing – Windows®…

upgrade your GLP2-BASIC/MODULAR – external PC – Windows 10® – more convenience and intuitive operation – optimized visualization – even faster inputs …

TOP-Class · modular · customized · no limits · VDE/EN/UL/IEC … · production · automation · worldwide networking · databases · statistics · data import/export · Windows10® · complex systems …

read more   read more   read more   read more   read more   read more
only PE/GB-resistance testers
only insulation testers (IR)
only safety testers ALL-IN-1
only PE/GB-resistance testers
only insulation testers (IR)
only high-voltage testers
only safety testers ALL-IN-1
only safety & function testers ALL-IN-1
only high-voltage testers
only safety testers ALL-IN-1
only safety & function testers ALL-IN-1
only PE/GB-resistance testers
only insulation testers (IR)
only leakage-current testers
only high-voltage testers
only safety testers ALL-IN-1
only safety & function testers ALL-IN-1
only safety testers ALL-IN-1
only safety & function testers ALL-IN-1
1–10 A˜       6/12 Veff 1–10 A˜       6/12 Veff
1–30 A˜       6/12 Veff
1–40 A˜       6/12 Veff
1–40 A˭       12 V
1–75 A˜       6/12 Veff
1–30 A˜       6/12 Veff 1–10 A˜       6/12 Veff
1–30 A˜       6/12 Veff
1–200 A˜ ˭       up to 50 V
custom
1–10 A˜       6/12 Veff
1–30 A˜       6/12 Veff
1–200 A˜ ˭       up to 50 V
custom
0–1 kV ˭       max. 30 MΩ 0–1 kV ˭       max. 10 GΩ 0–1 kV ˭       max. 10 GΩ 0–1 kV ˭       max. 10 GΩ
up to 50 kV˭       up to 10 TΩ
custom
0–1 kV ˭       max. 10 GΩ
up to 50 kV˭       up to 10 TΩ
custom
0–6 kV˜       max.3 mA safety
0–6 kV˜       max. 100 mA
0–6 kV˜       max. 200 mA
0–12 kV˜       max. 100 mA
0–15 kV˜       max. 50 mA
0–30 kV˜       max. 30 mA
0–50 kV˜       max. 25 mA
0–6 kV˜       max.3 mA safety
0–6 kV˜       max. 100 mA
0–6 kV˜       max.3 mA safety
0–6 kV˜       max. 100 mA
custom
0–6 kV˜       max.3 mA safety
0–6 kV˜       max. 20 mA
0–6 kV˜       max. 100 mA
0–6 kV˜       max. 200 mA
0–12 kV˜       max. 100 mA
custom
0–4 kV ˭       max. 10 mA
0–6 kV ˭       max. 10 mA
0–6 kV ˭       max. 20 mA
0–10 kV ˭       max. 6 mA
0–6 kV ˭       max. 4 mA
0–6 kV ˭       max. 100 mA
0–6 kV ˭       max. 4 mA
0–6 kV ˭       max. 100 mA
custom
0–4 kV ˭       max. 10 mA
0–6 kV ˭       max. 10 mA
0–6 kV ˭       max. 20 mA
0–10 kV ˭       max. 6 mA
custom
0–250 V˜       max. 5 A 0–250 V˜       max. 5 A
230 V˜       max. 16 A
according to your requirements according to your requirements
according to your requirements according to your requirements
electronic products EN60990
medical products EN60601
UL compliant
1-phase
electronic products EN60990
medical products EN60601
UL compliant
1-phase
3-phase
up to 1 MHz
customized
electronic products EN60990
medical products EN60601
UL compliant
1-phase
3-phase
up to 1 MHz
customized
safety safety and function safety and function
dimming: analogue, digital, ECG communication, DALI...
parameterize, configure
LED test with plug&play comBOX
safety and function
dimming: analogue, digital, ECG communication, DALI...
parameterize, configure
LED test with plug&play comBOX
safety and function
dimming: analogue, digital, ECG communication, DALI...
parameterize, configure
for HV-release for HV-release for HV-release
two-channel two-channel two-channel two-channel
possible possible possible possible
L1, N, PE L1, N, PE L1, N, PE L1, N, PE
L1, L2, L3, N, PE
made to your specifications
L1, N, PE
L1, L2, L3, N, PE
made to your specifications
test socket, country-specific
test probe
test socket, country-specific
test probe
test pistols
test socket at the rear, 10-pole, optional
test socket, country-specific
test probe
test pistols
test socket at the rear, 10-pole, optional
according to your requirements according to your requirements
possible possible possible possible
possible possible possible possible
with digital I/O
with RS232 via SCHLEICH communication protocol
with USB via SCHLEICH communication protocol
with LAN via SCHLEICH communication protocol
with digital I/O
with RS232 via SCHLEICH communication protocol
with LAN via SCHLEICH communication protocol
with LAN via SCPI commands
with LAN via TCP/IP Socket Communication
with PROFIBUS
with PROFINET
with EtherCAT
with CANopen
made to your specifications
with digital I/O
with RS232 via SCHLEICH communication protocol
with LAN via SCHLEICH communication protocol
with LAN via SCPI commands
with LAN via TCP/IP Socket Communication
with PROFIBUS
with PROFINET
with EtherCAT
with CANopen
made to your specifications
with digital I/O
with RS232 via SCHLEICH communication protocol
with LAN via SCHLEICH communication protocol
with LAN via SCPI commands
with LAN via TCP/IP Socket Communication
with PROFIBUS
with PROFINET
with EtherCAT
with CANopen
made to your specifications
with digital I/O
with RS232 via SCHLEICH communication protocol
with LAN via SCHLEICH communication protocol
with LAN via TCP/IP Socket Communication
with PROFIBUS
with PROFINET
with EtherCAT
with CANopen
with CAN Automotive
with DeviceNet
made to your specifications
file system
SQL
file system
SQL
file system
SQL
ACCESS
SQL
ORACLE
import from PC, PLC, MES, ...
import from LabVIEW®
stored in the tester
import from PC, PLC, MES, ...
import from LabVIEW®
stored in the tester
stored in the tester and network
import from PC, PLC, MES, ...
import from LabVIEW®
import from ERP system, e.g. SAP®
stored in the tester
stored in the tester and network
import from PC, PLC, MES, ...
import from LabVIEW®
import from ERP system, e.g. SAP®
stored in the tester
stored in the tester and network
import from PC, PLC, MES, ...
import from LabVIEW®
import from ERP system, e.g. SAP®
stored in the tester
stored in the tester and network
import from PC, PLC, MES, ...
import from ERP system, e.g. SAP®
cached in the tester
transfer to PC, PLC, MES, ...
transfer to LabVIEW®
cached in the tester
transfer to PC, PLC, MES, ...
transfer to LabVIEW®
cached in the tester or network
transfer to PC, PLC, MES, ...
transfer to LabVIEW®
transfer to ERP system, e.g. SAP®
cached in the tester or network
transfer to PC, PLC, MES, ...
transfer to LabVIEW®
transfer to ERP system, e.g. SAP®
cached in the tester or network
transfer to PC, PLC, MES, ...
transfer to LabVIEW®
transfer to ERP system, e.g. SAP®
cached in the tester or network
transfer to PC, PLC, MES, ...
transfer to ERP system, e.g. SAP®
with ERP, MES, PLC, CAQ, ...
via LAN, WWW, OPC, ...
with ERP, MES, PLC, CAQ, ...
via LAN, WWW, OPC, ...
with ERP, MES, PLC, CAQ, ...
via LAN, WWW, OPC, ...
with ERP, MES, PLC, CAQ, ...
via LAN, WWW, OPC, ...
yes yes yes yes
yes yes yes yes
yes yes yes yes yes
yes yes yes yes yes yes
yes yes yes yes
yes yes
SCHLEICH embedded SCHLEICH embedded Windows Embedded®-PC in the tester Windows Embedded®-PC in the tester Windows 10®-19"-Industrial PC integrated
Stand-alone Windows 10®-PC
external Windows 10® PC
LED 7-segment touch color LCD 480 x 272 touch color LCD 800 x 480
PC monitor of any size
touch color LCD 800 x 480
PC monitor of any size
PC monitor of any size
touch monitor of any size
on stock in 5 business days on stock order-related manufacturing order-related manufacturing order-related manufacturing
