Individual test hoods
Test mandatory touch protection
Test hoods are protective devices that serve to protect operators from electrical hazards and prevent contact with the test object during testing. They are available in various designs and sizes to cover almost all applications.
Our extensive range of standard test hoods covers almost all applications. If there is no suitable standard solution available in our portfolio, we can also manufacture custom test hoods for you.
Key facts:
-
Extensive selection of standard test hood variants
-
Mechanically robust and durable designs
- Designed for tough use in industrial environments
- Long service life and reliable operation
14 Product Variants
Show all 14 product variants
Perfect and secure touch protection
SCHLEICH are a rock-solid, durable purchase that reduces the risk to the operator. Ergonomics and reliability are paramount, thanks to the touch-proof cover of the test objects.

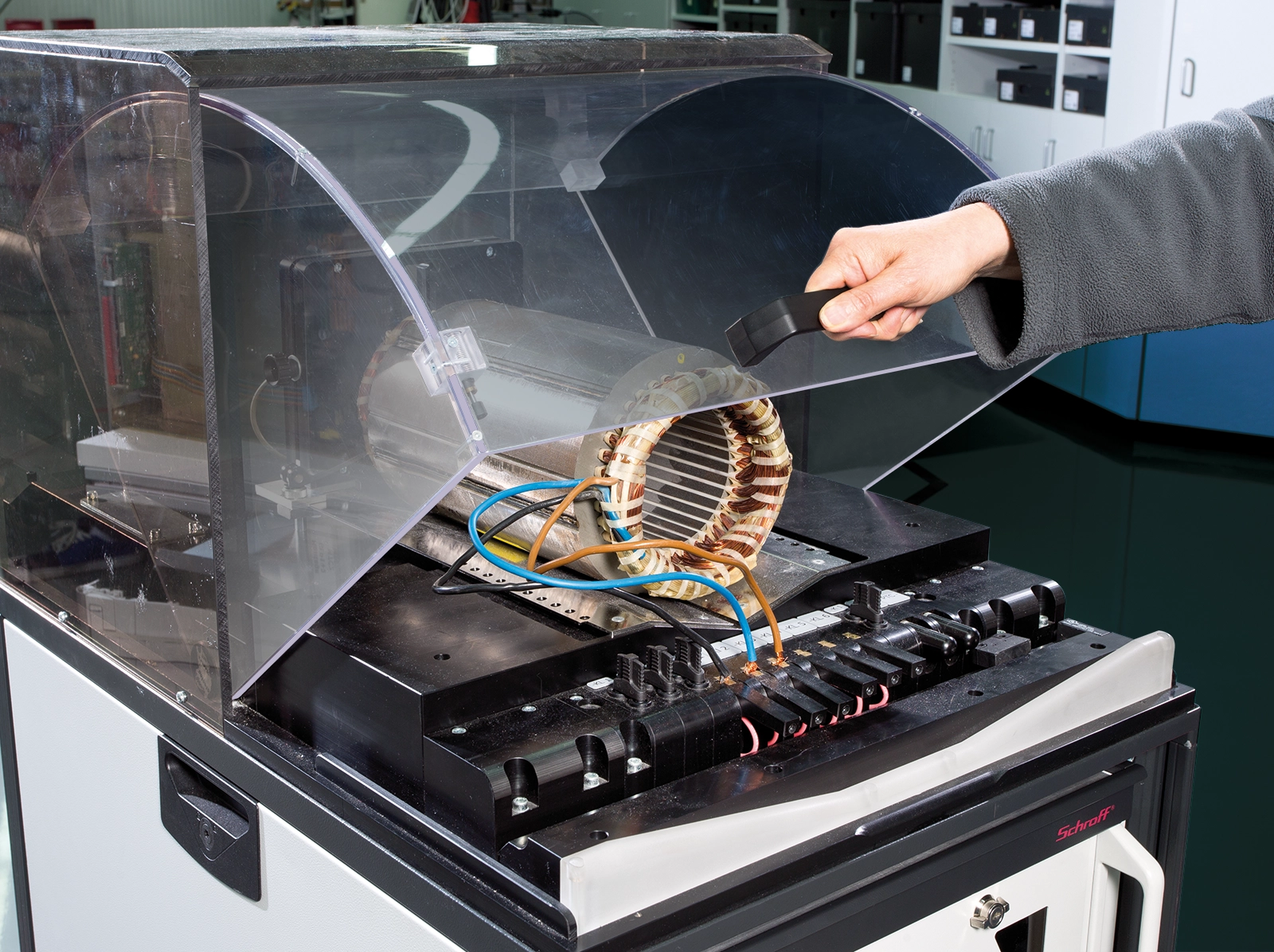

The smooth-running test cover of shatterproof, transparent plastic and device under test the device under test to enable visual observation or control during testing. Tests test cover only test cover when test cover is closed, and the closed state of cover continuously monitored by a dual-circuit safety limit switch. It complies with legal requirements and is approved for safety purposes.
Closing the test cover the test sequence. Opening it while the test is running cancel device cancel immediately. The TEST VOLTAGE switched off in the test device and the device under test discharge. The discharge process is monitored by the test device.
The test cover remains test cover via the optional locking mechanism:
- until discharge test object is completely discharge
- until the completion of a mechanical movement or rotation
- if test result is negative test result n.GO)
The test hoods can be equipped with individual mechanical mounts for your test objects. These can be easily mounted on the base plate or on interchangeable plates. Inside the cover connections for connecting the test leads. The connecting cables to the test device are usually connected to the test device via secure plug connectors.
The complete insulation of the test room prevents voltage carryover to the outside. Operating personnel are optimally protected.
discharge sensitive products from electrostatic charge and discharge , test hoods made of ESD materials are available at an additional cost.
Individual test hoods in various sizes and designs

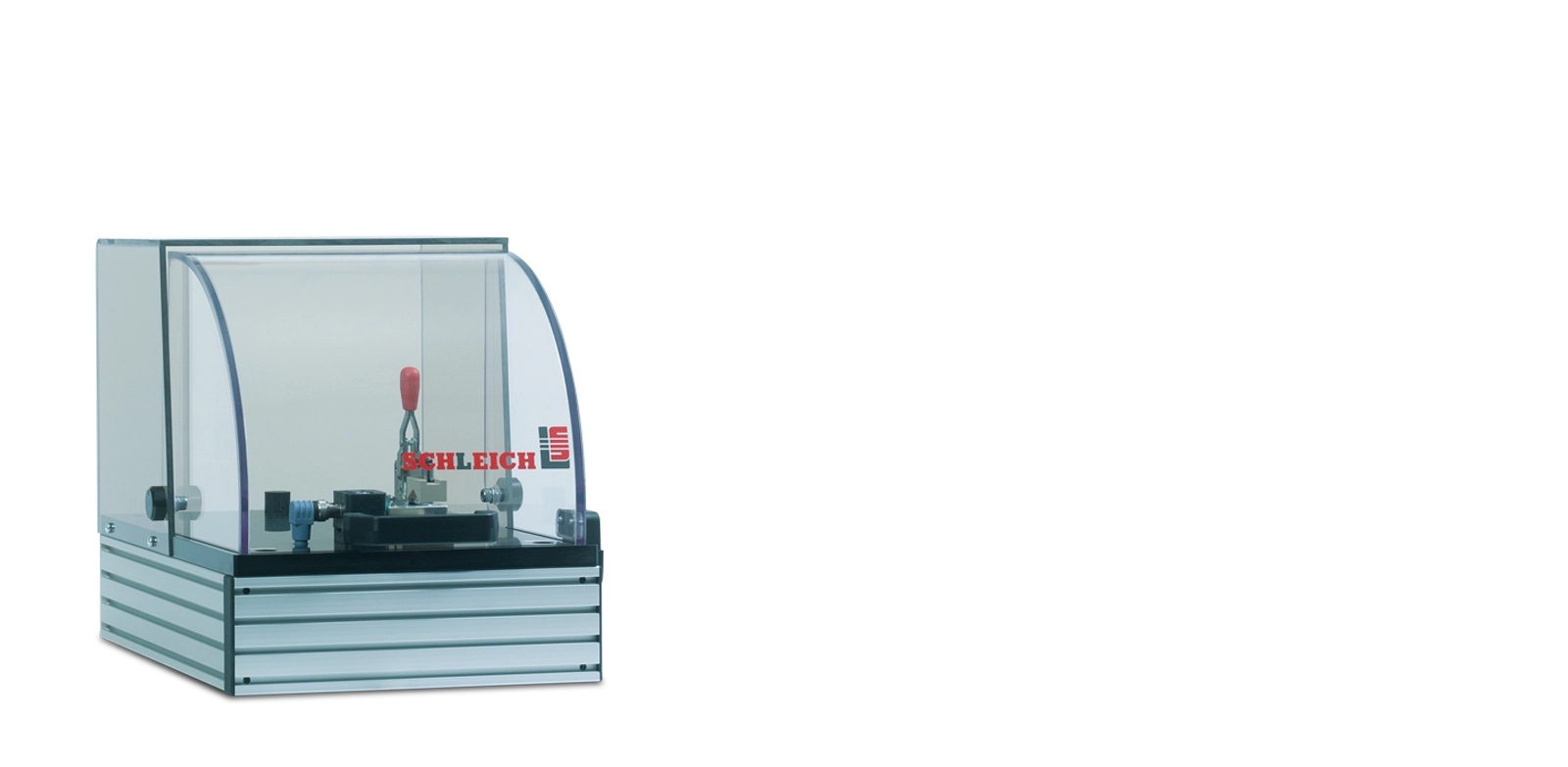

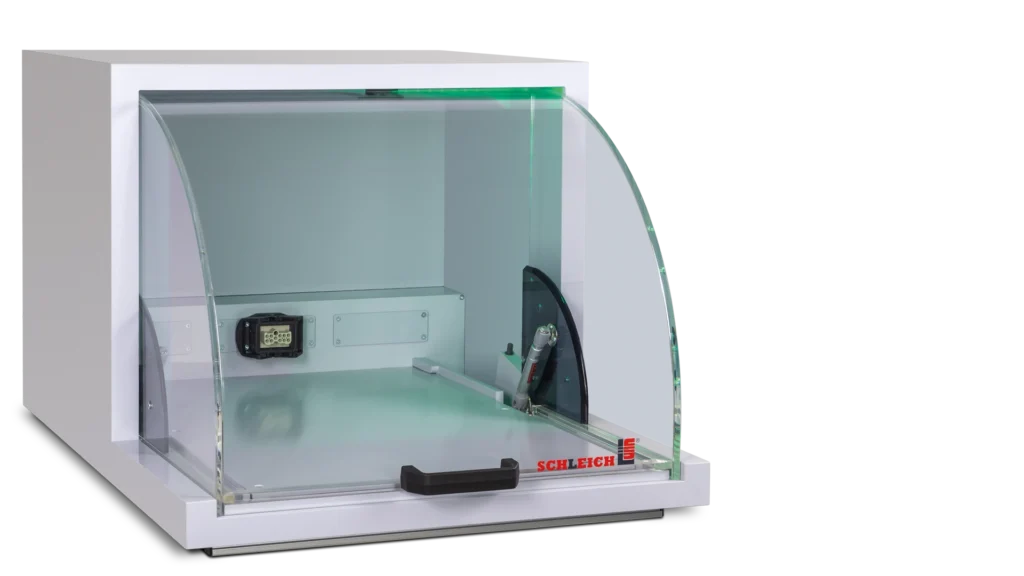

Single test hood model 0

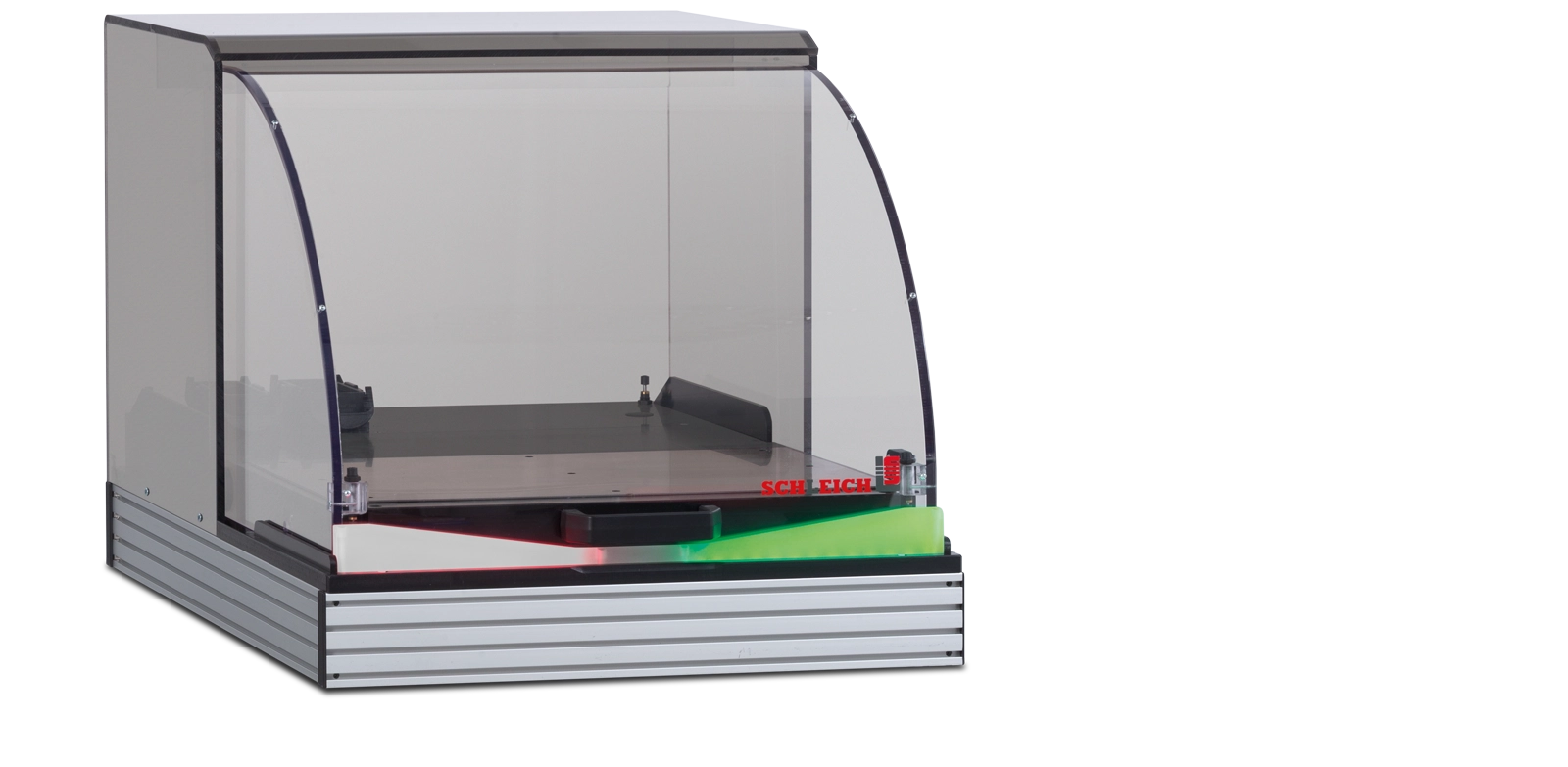

Single test hood model 1

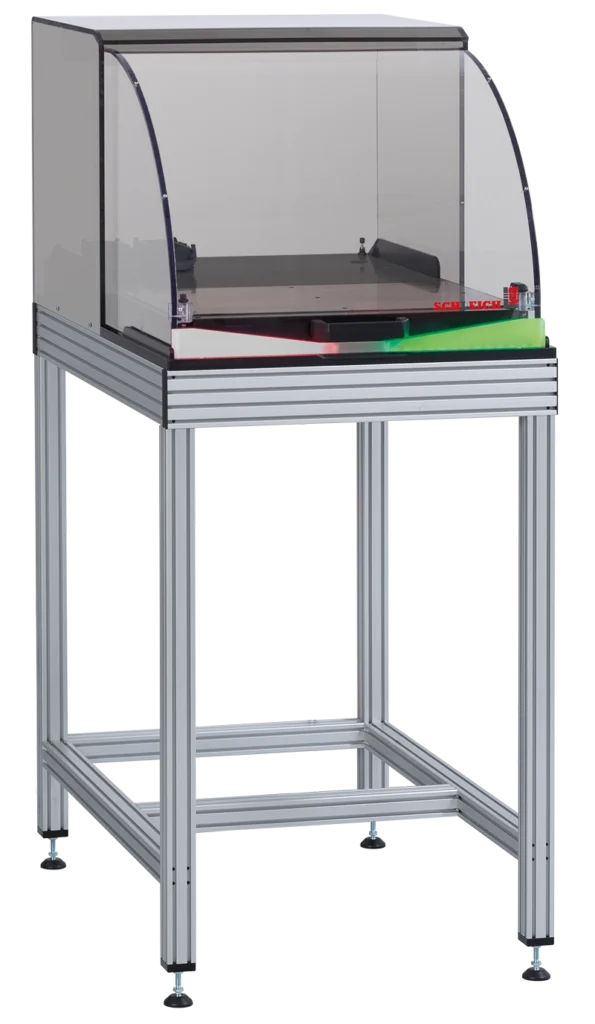

A table frame is available with adjustable feet or casters as an option.
test cover built-in a rolling table.

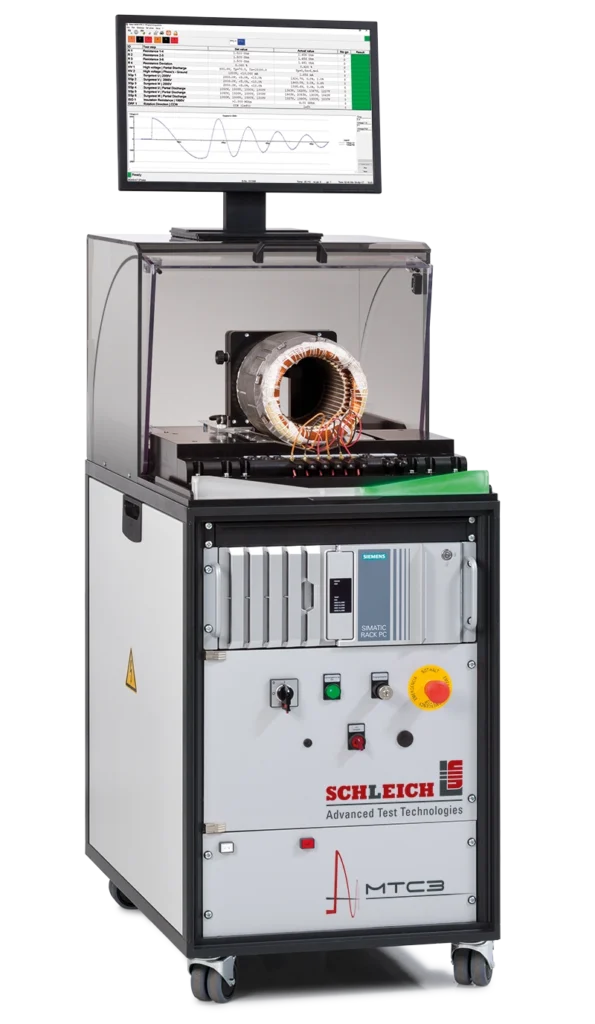

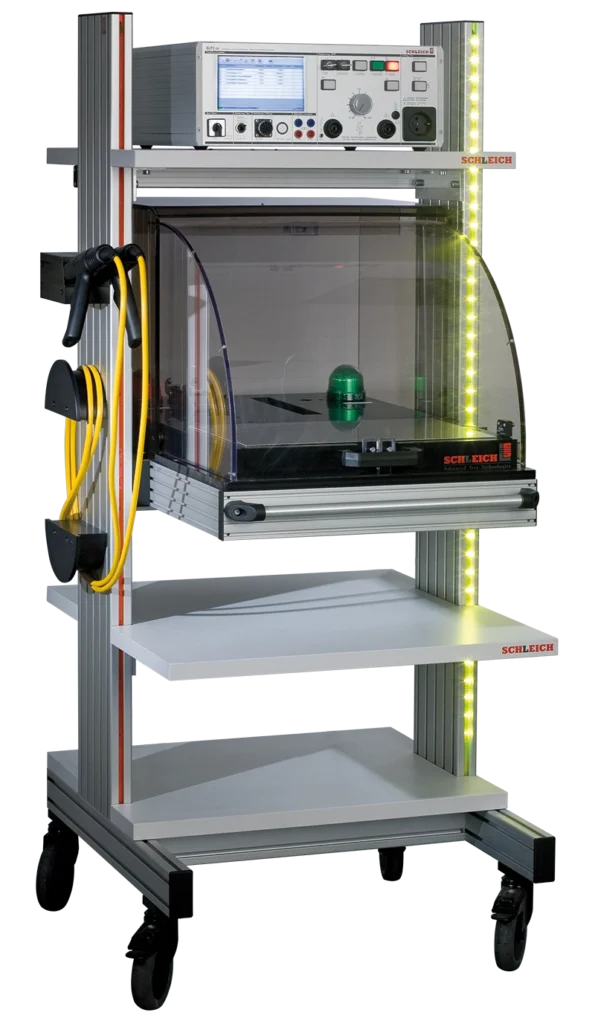

test cover on a test device in a rolling container.

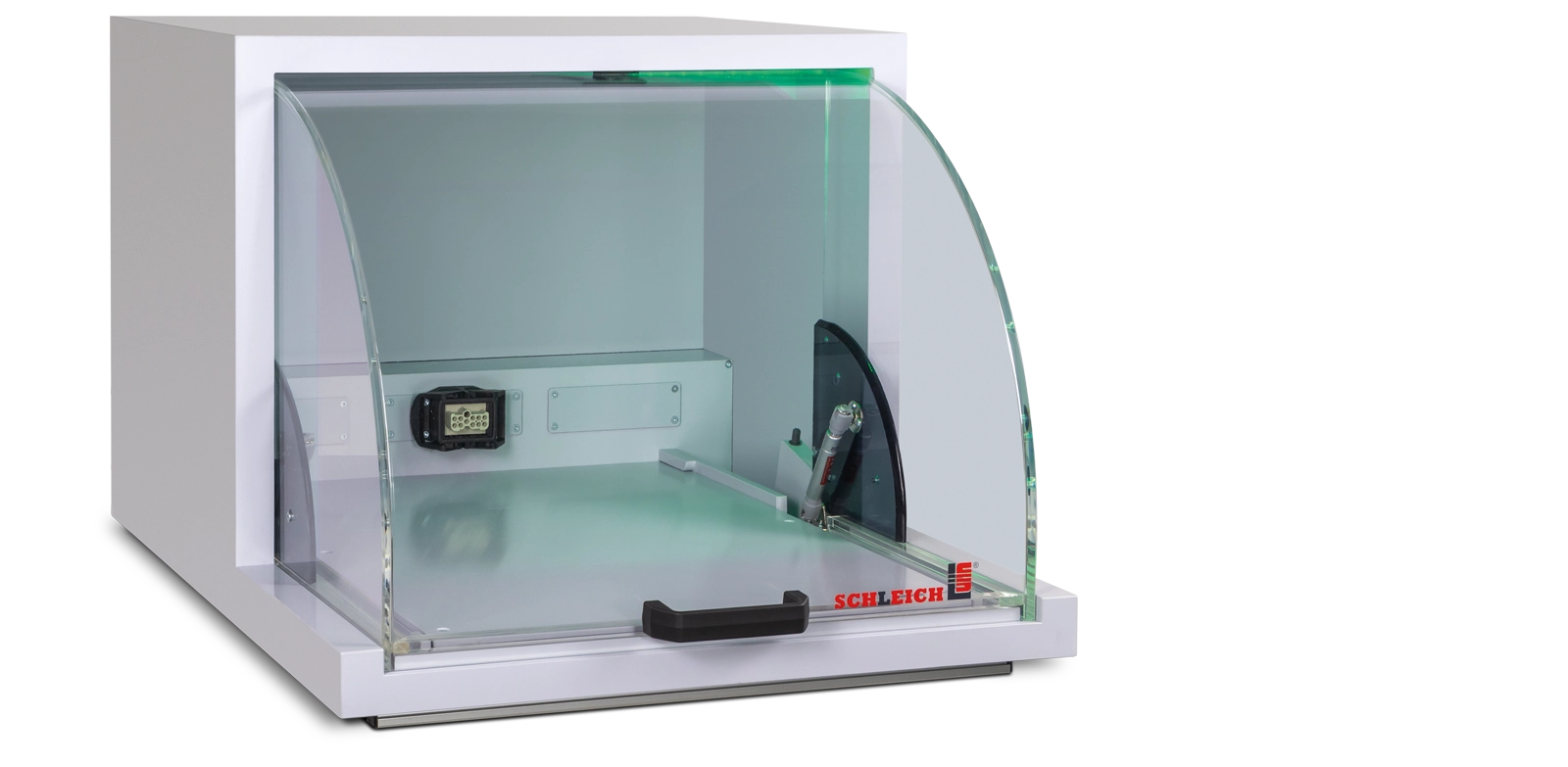

Individual test hood model 13

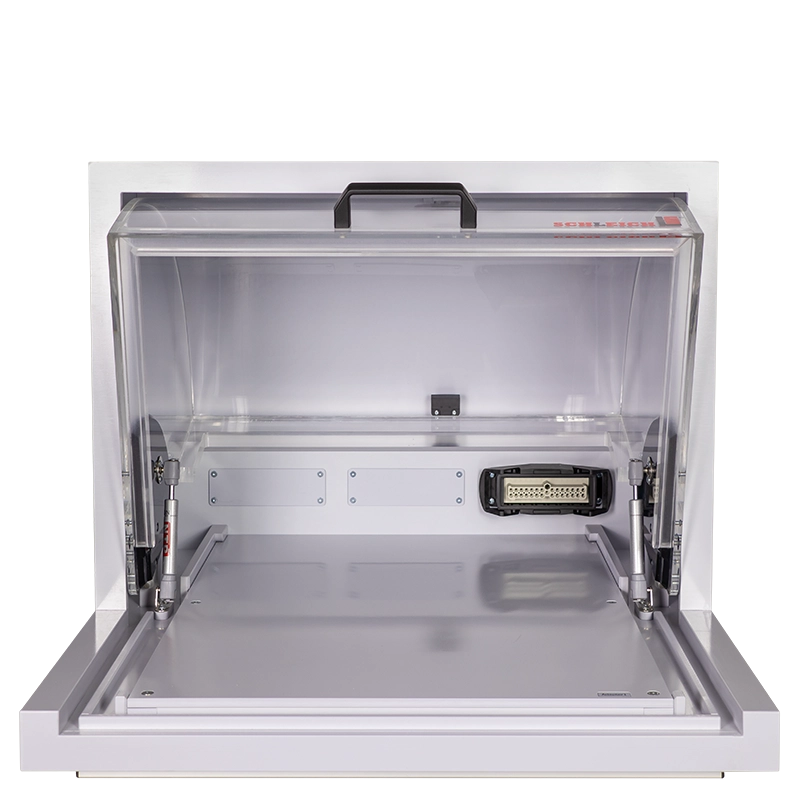

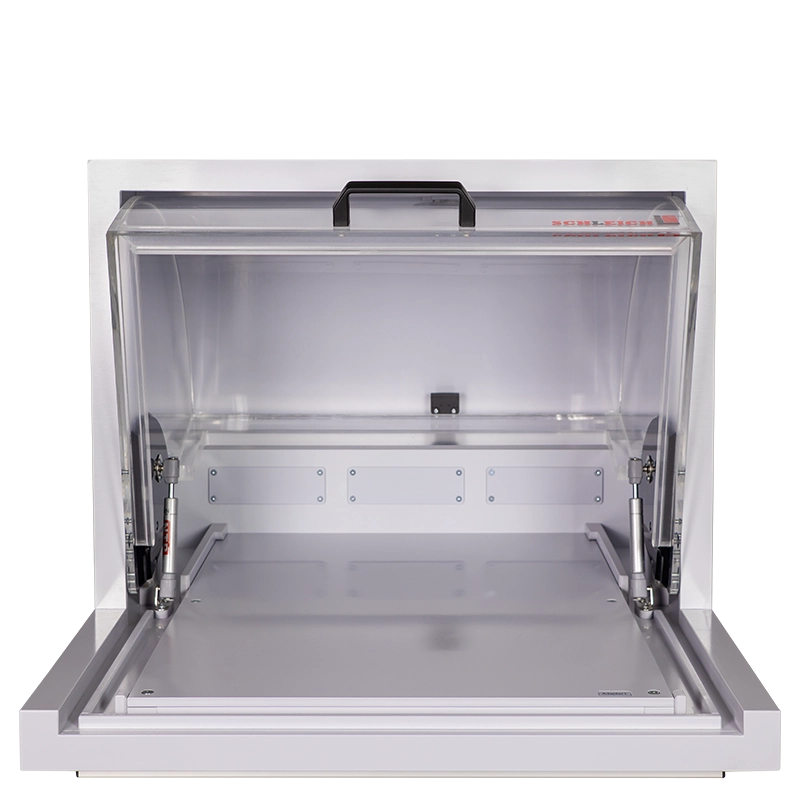

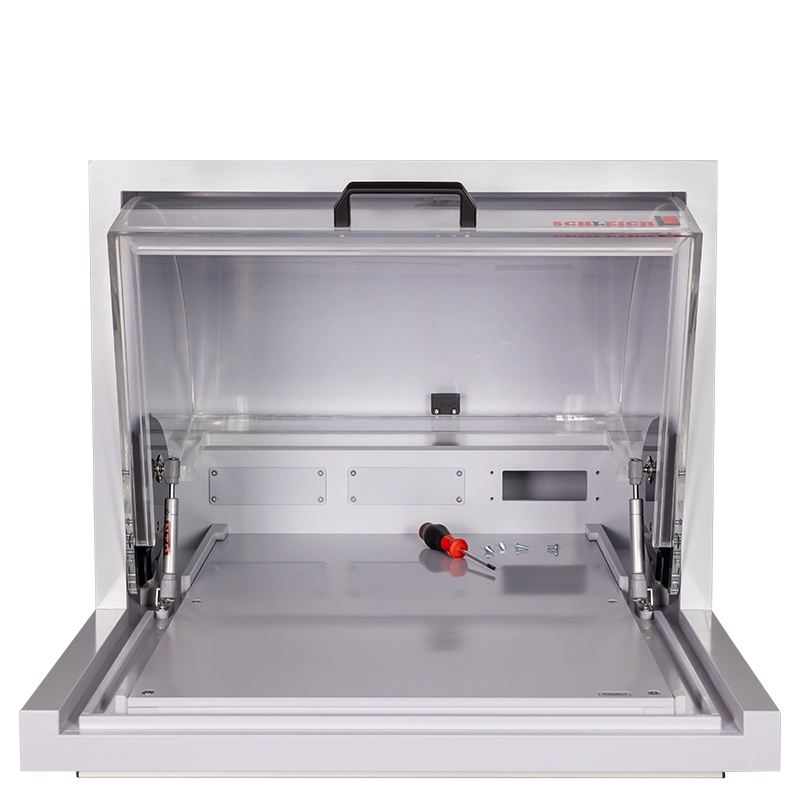

The test cover designed for the installation of up to three rectangular industrial plugs. To do this, simply test cover the covers on connection box the test cover and install the industrial plugs. Round high-voltage plugs from SCHLEICH also be installed.

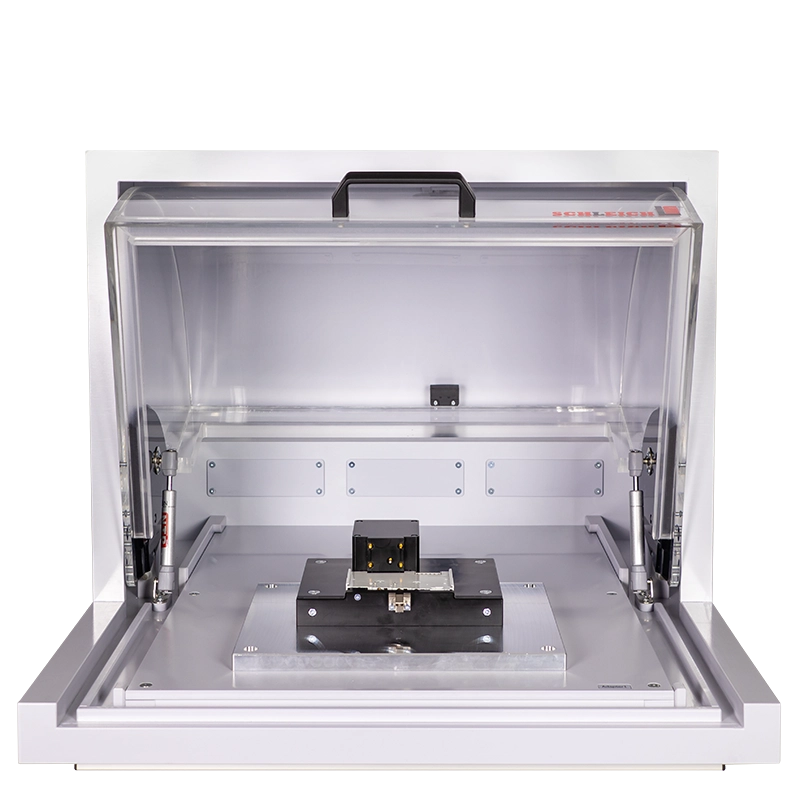

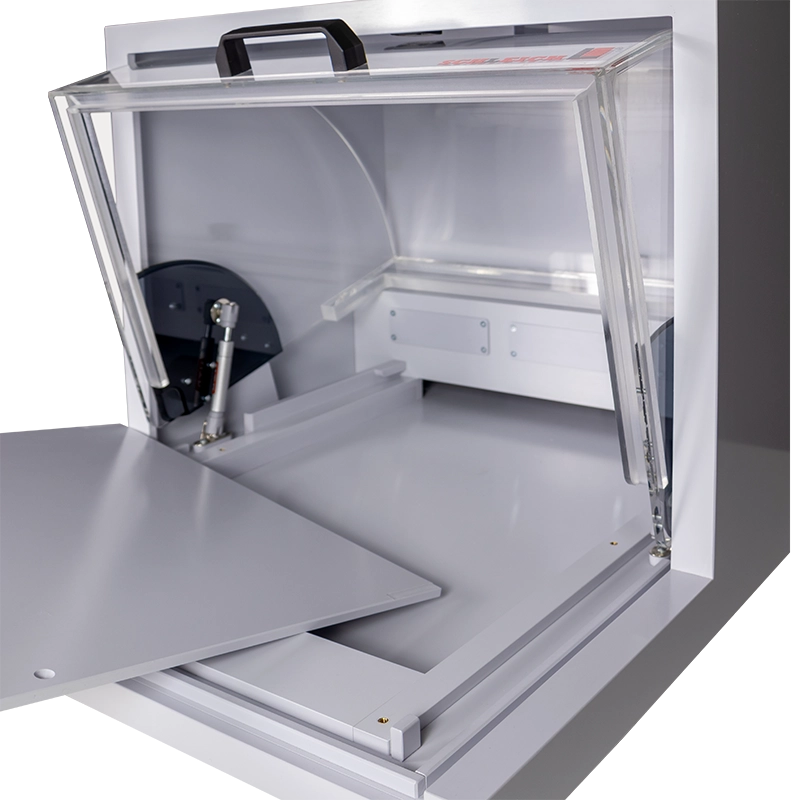

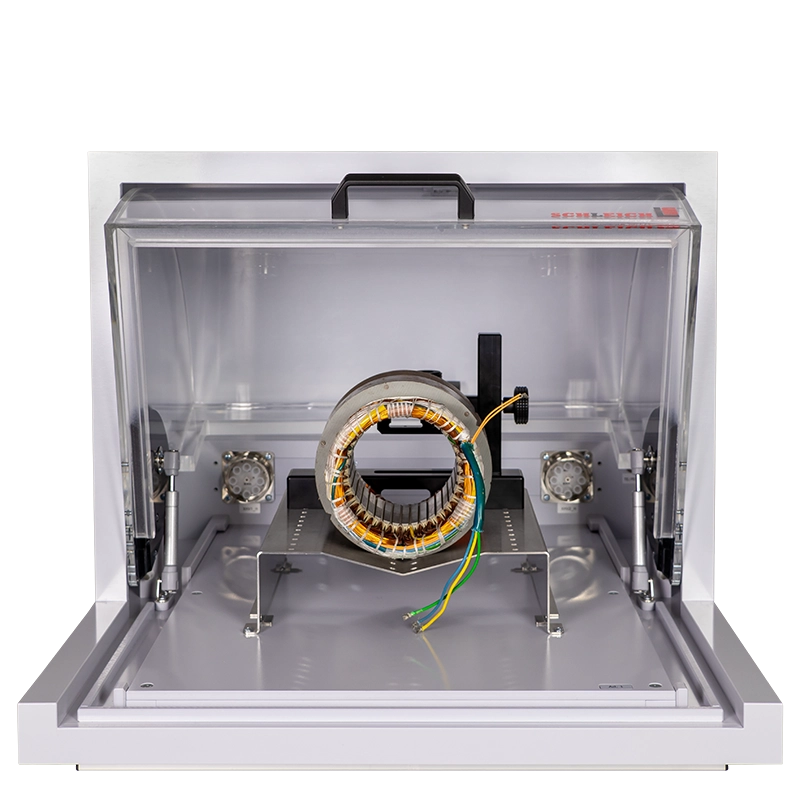

The base plate of test cover loosened with just a few screws and easily pulled out toward the front. There is sufficient installation space beneath the base plate to route test cables to the base plate from there. Your advantage: You can custom the placement of custom test object holder and test object connections on the base plate for optimal ergonomics.
An application with interchangeable base plates is also possible. You can test cover directly to test cover via a flexible plug connection on the back of the base plate. The base plate is guided at the sides to ensure that the connectors on the base plate and the connection box fit together perfectly.

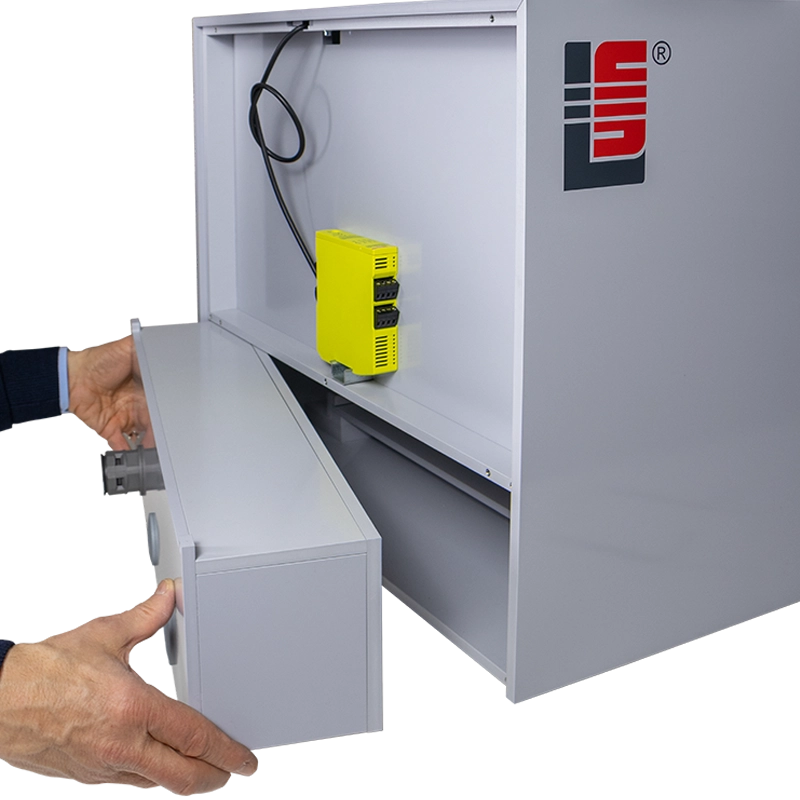

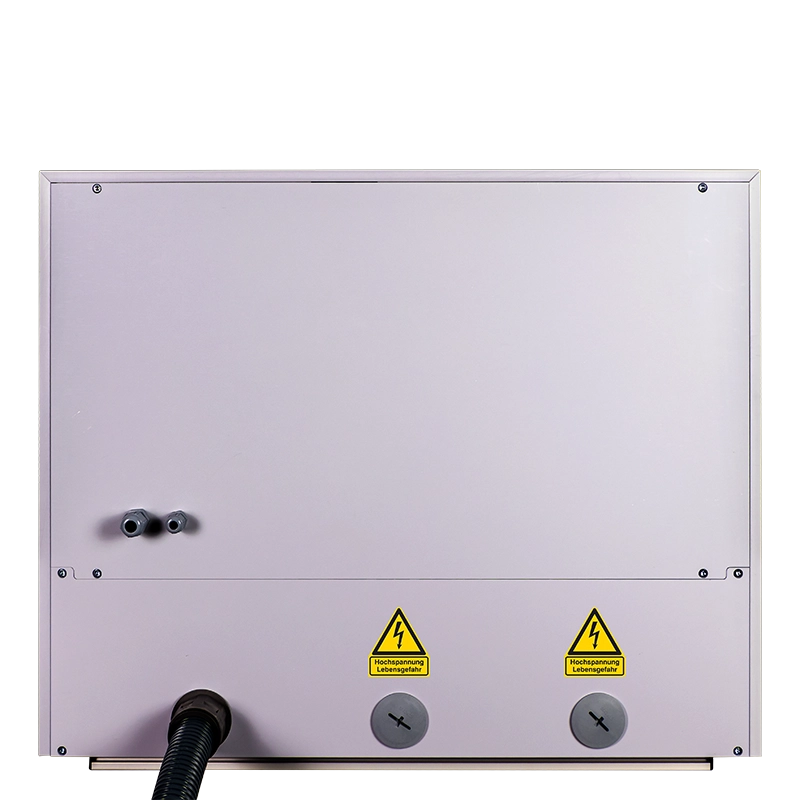

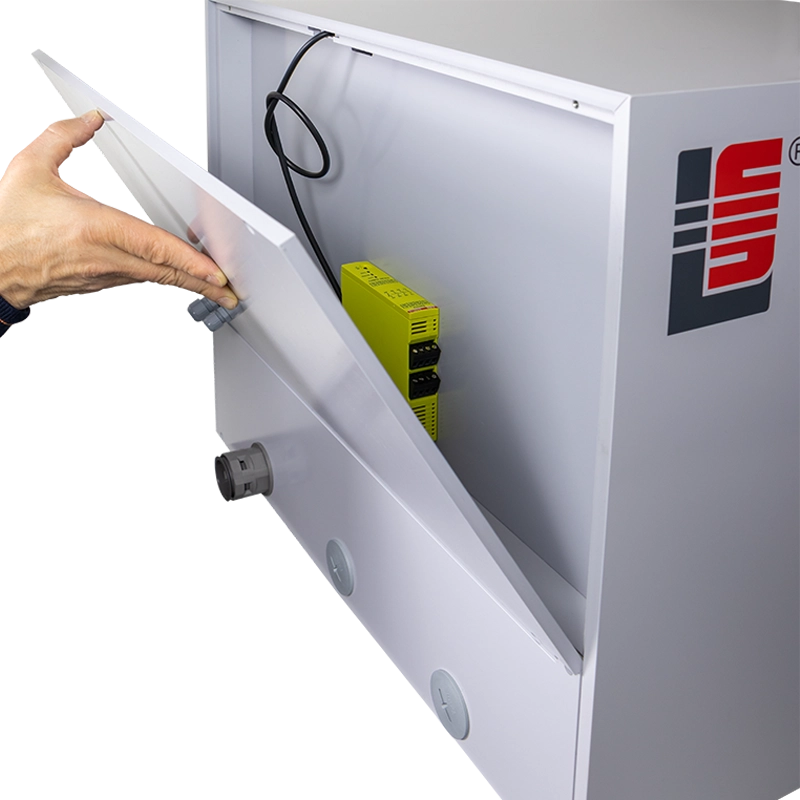

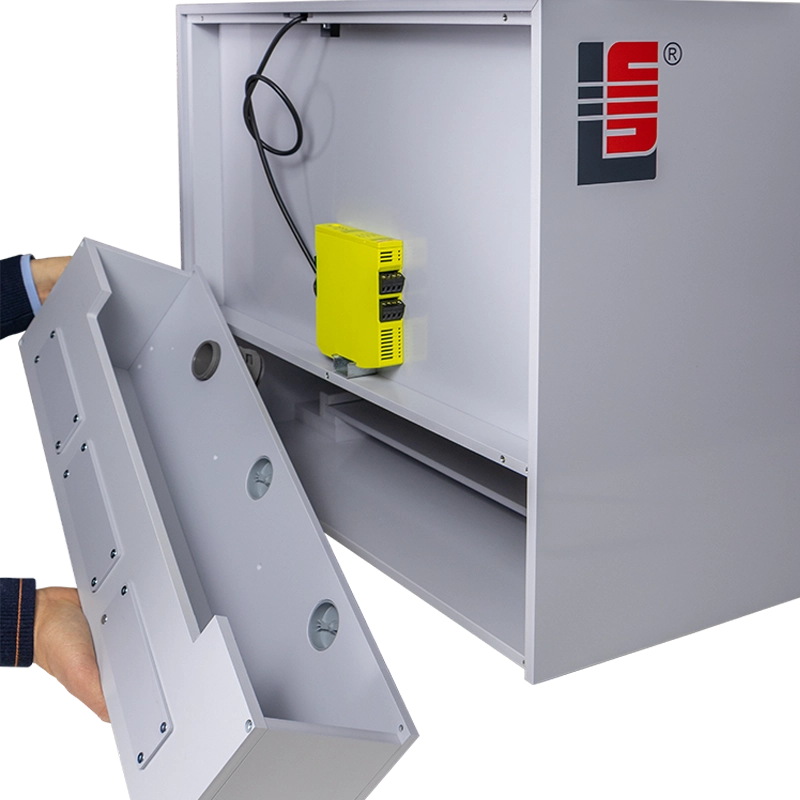

The rear panel of test cover be opened to install a safety relay or other components. The connection box be easily test cover from the test cover , making it convenient to wire and adapt to individual requirements.

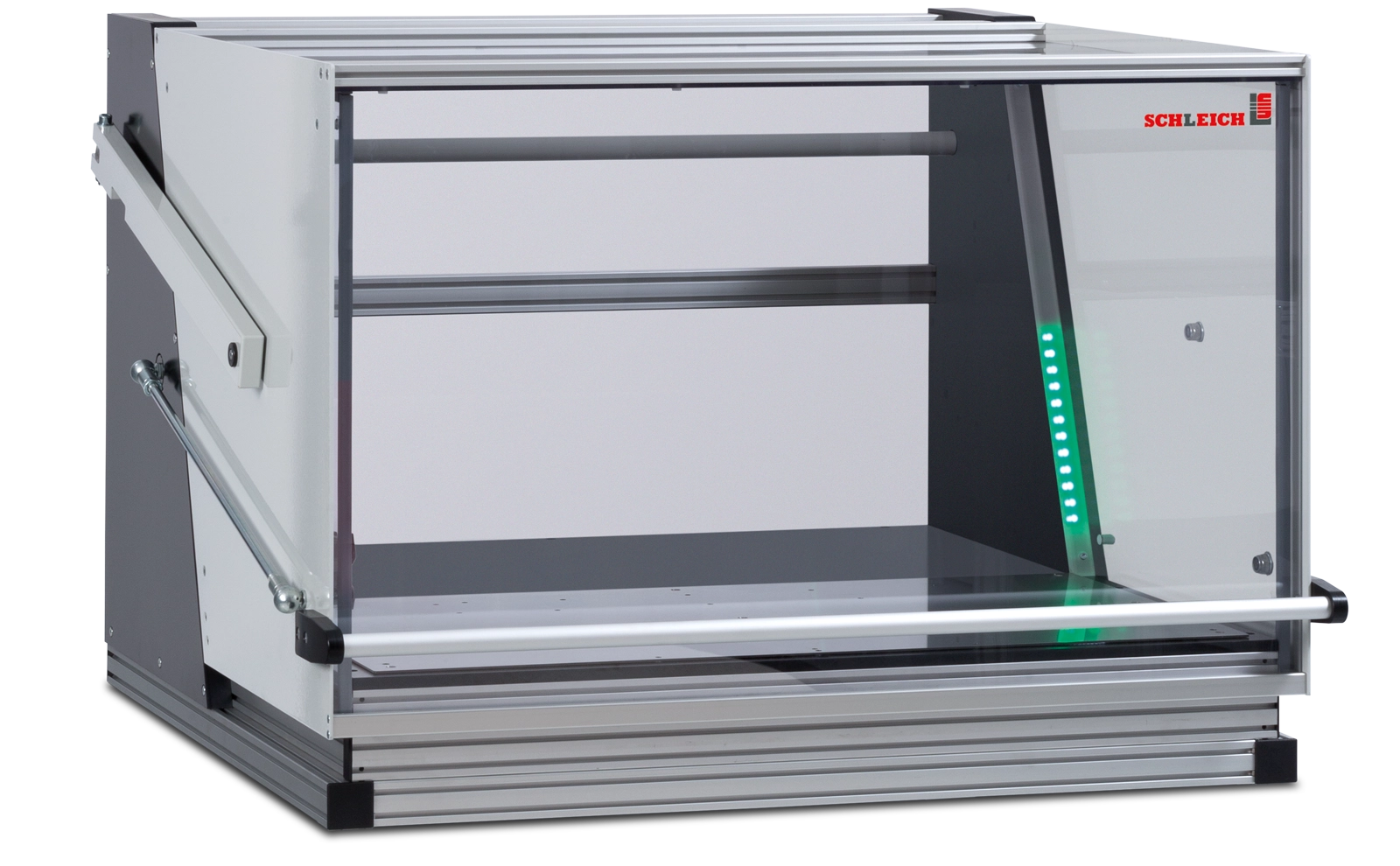

Single test hood model 10

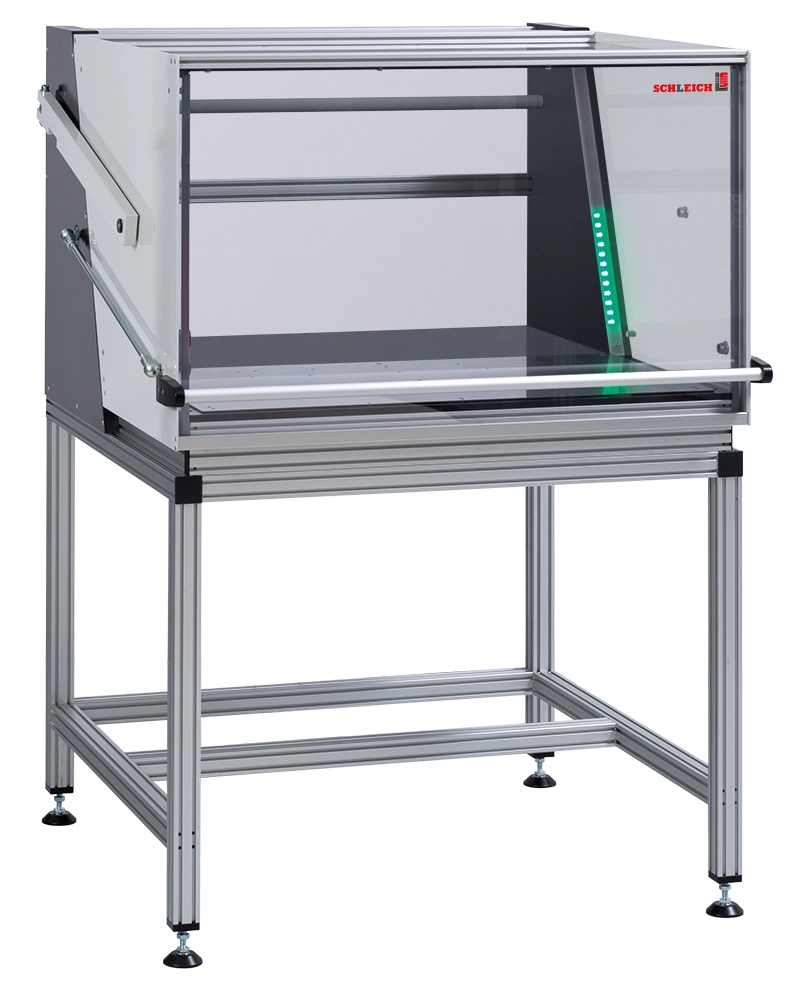

Table frames with adjustable feet or casters are also available—for maximum ergonomics in your workspace.

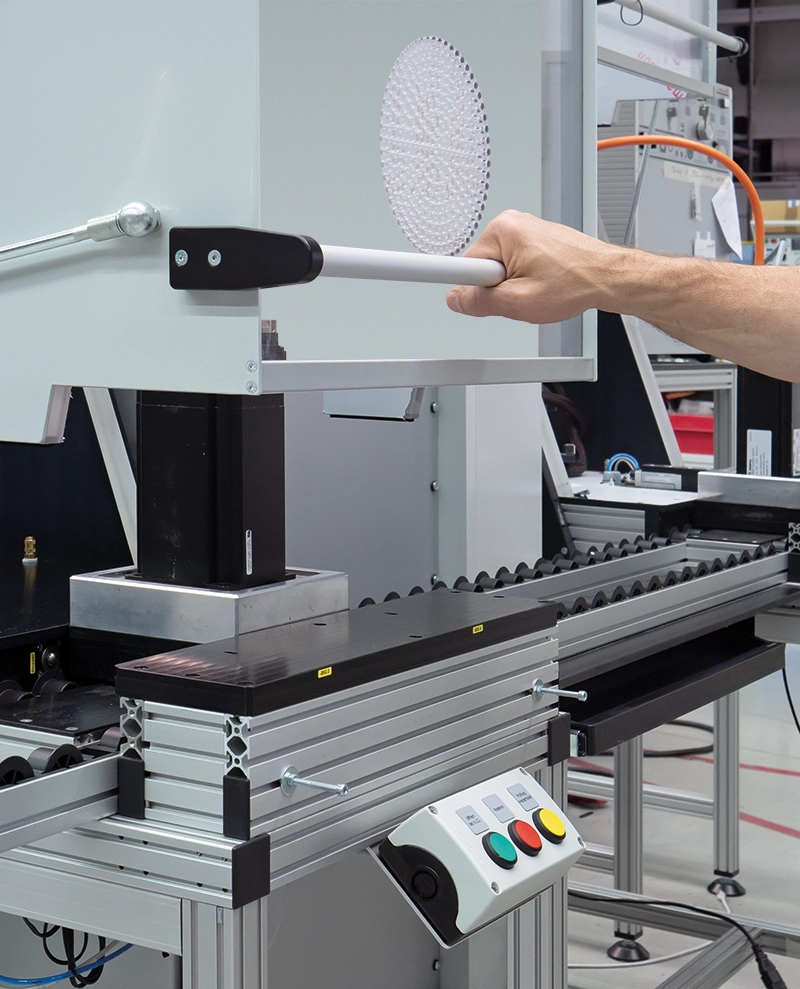

test cover continuous, manually operated roller belt – for comfortable and safe handling of test specimens.

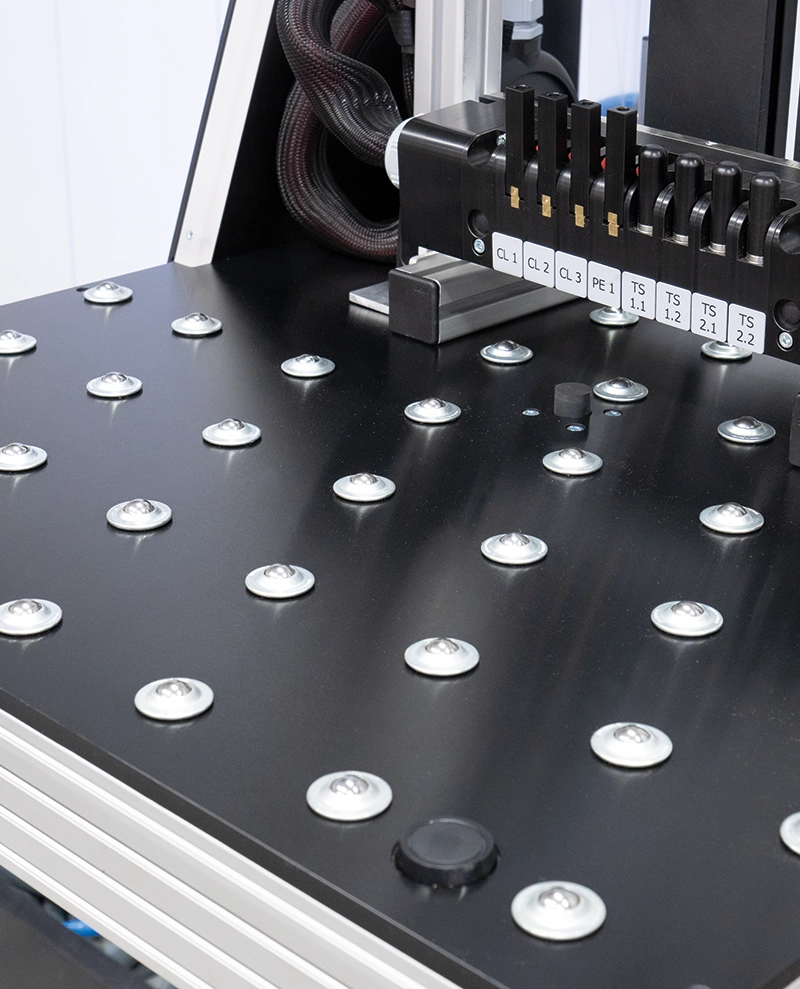

Ball rollers integrated into the work surface – for effortless and precise positioning of test slides.
Practical solution for the testing area.

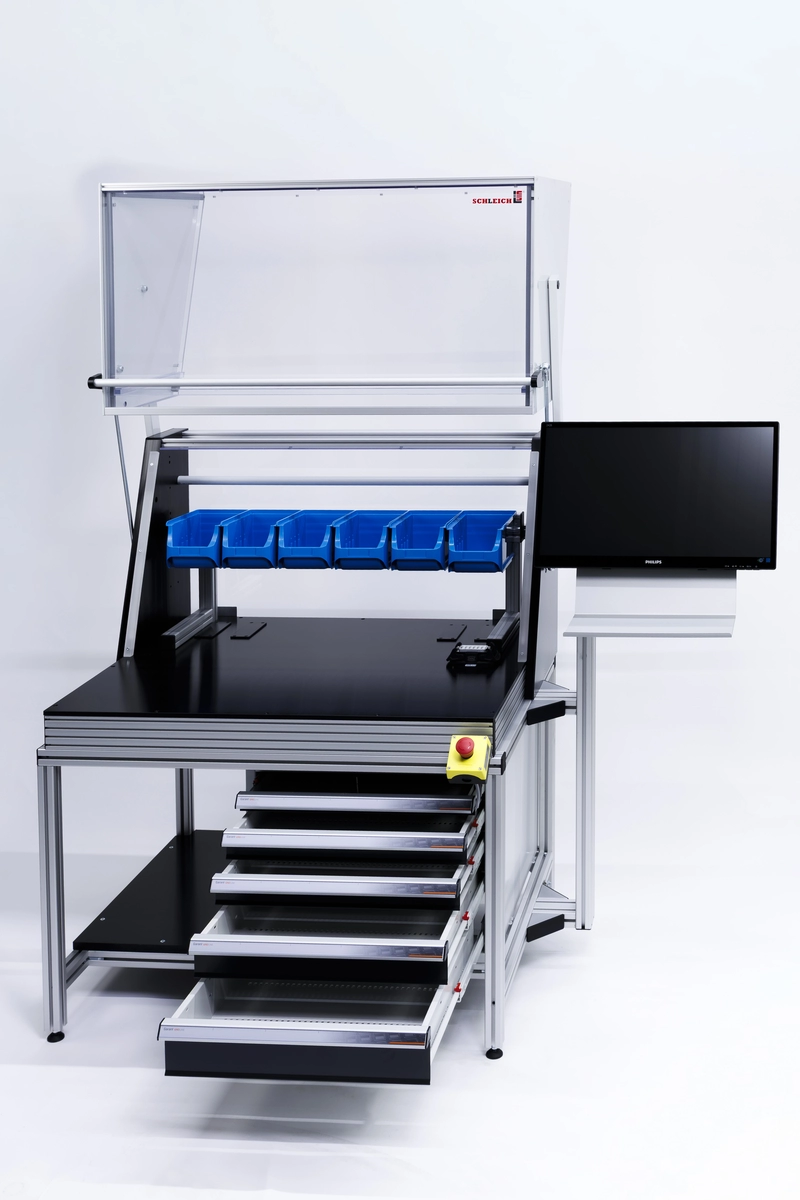

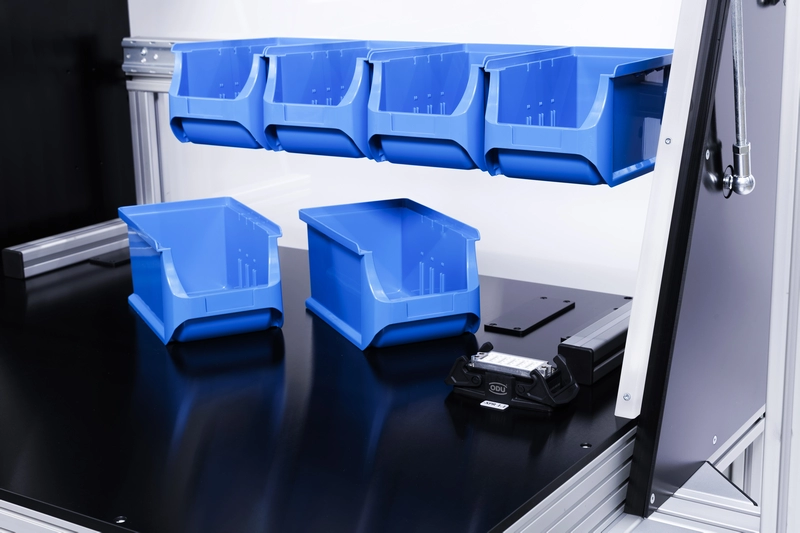

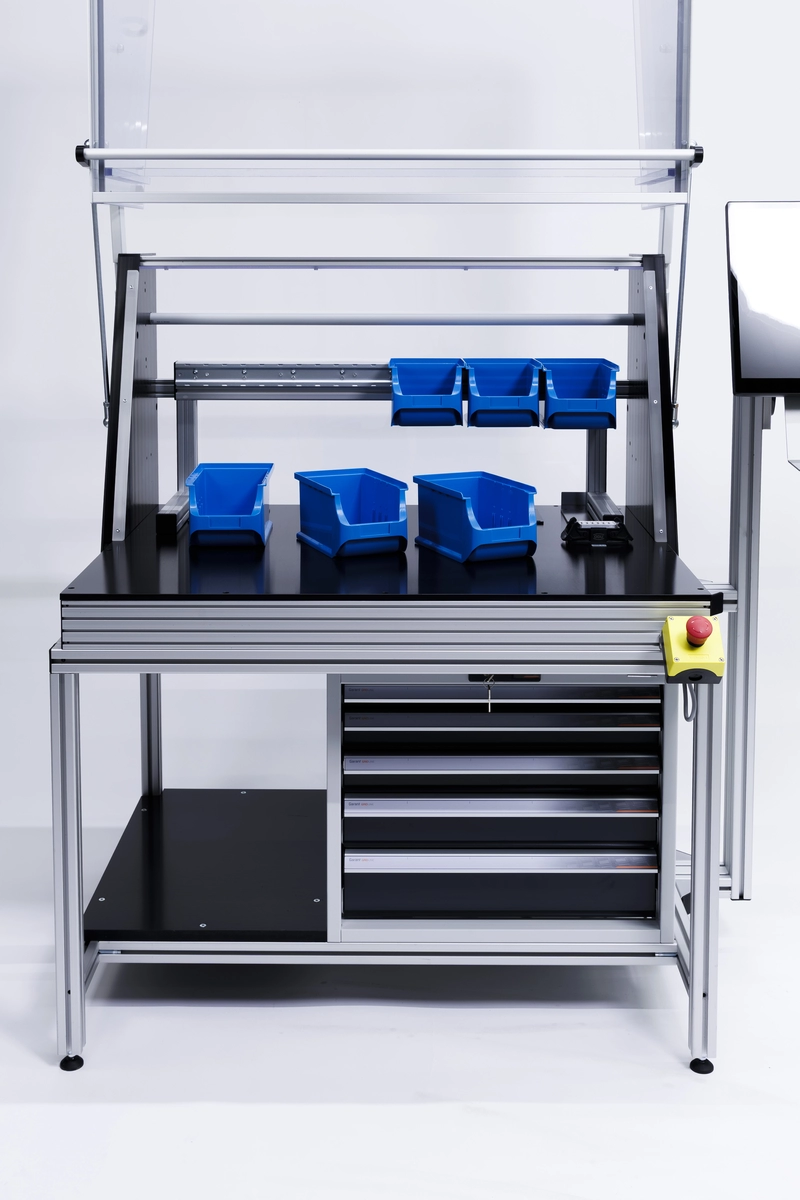

Our modular table frame offers integrated pull-out drawers for test adapters and tools, as well as storage boxes for assembly work directly at the test station.
This way, you have everything at your fingertips, save time, and ensure an efficient working environment.

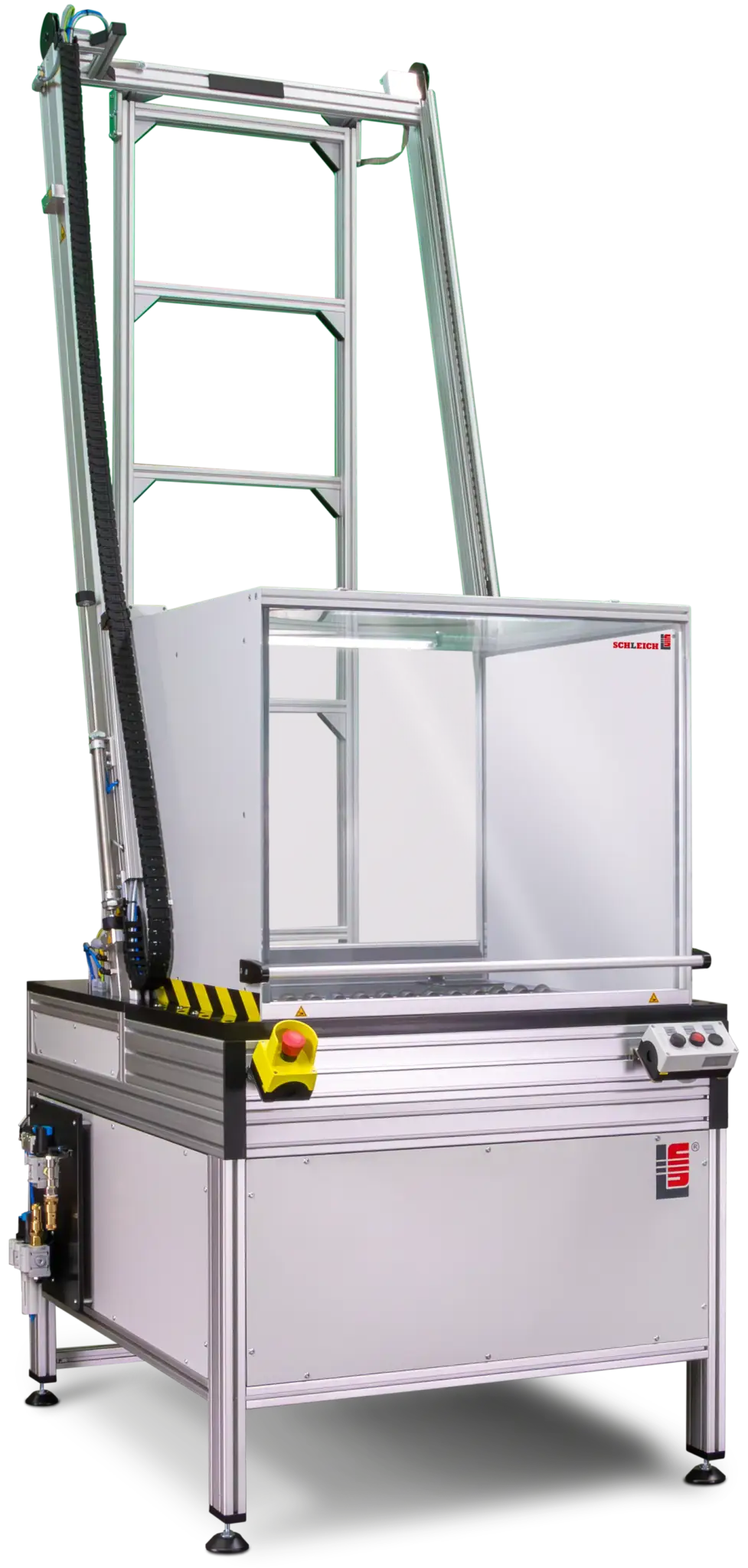

Individual test hood model 20

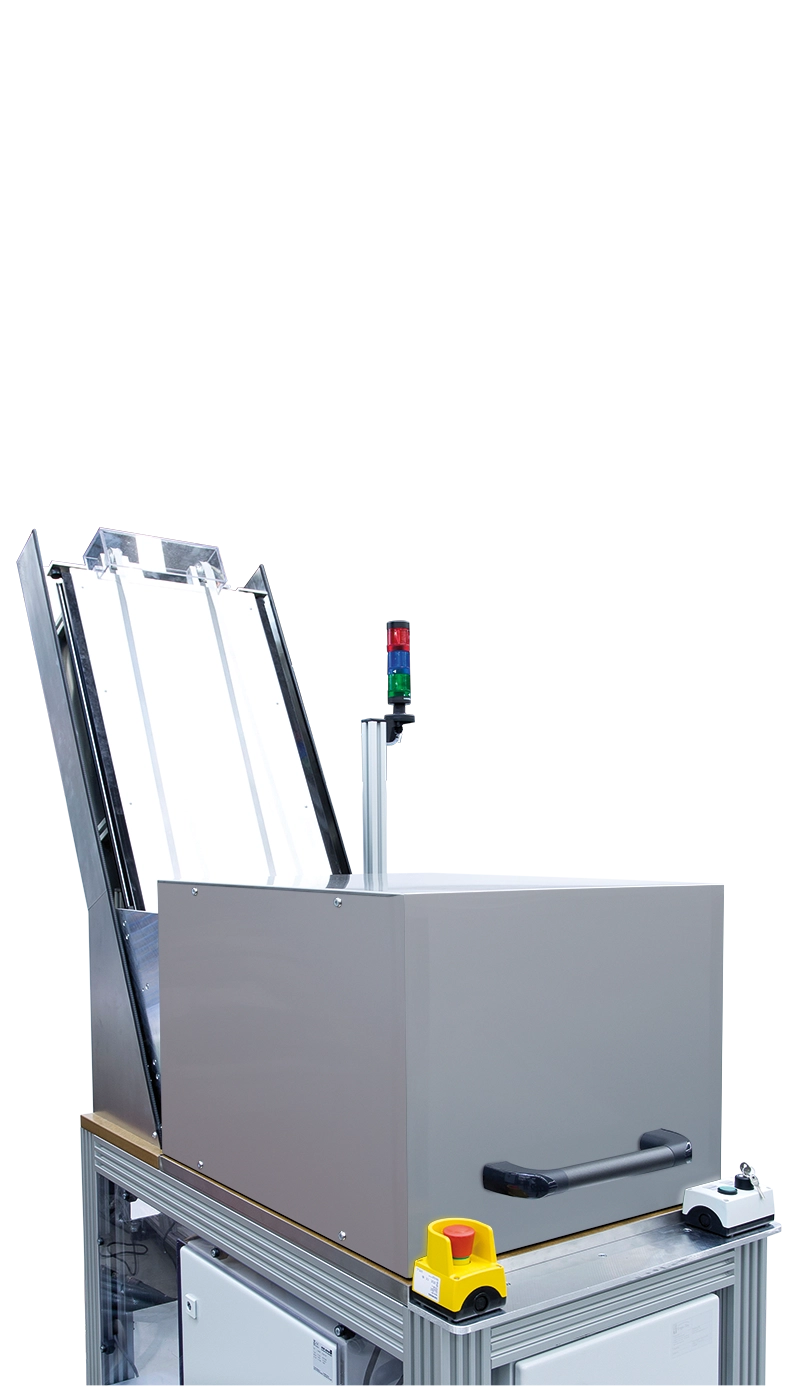

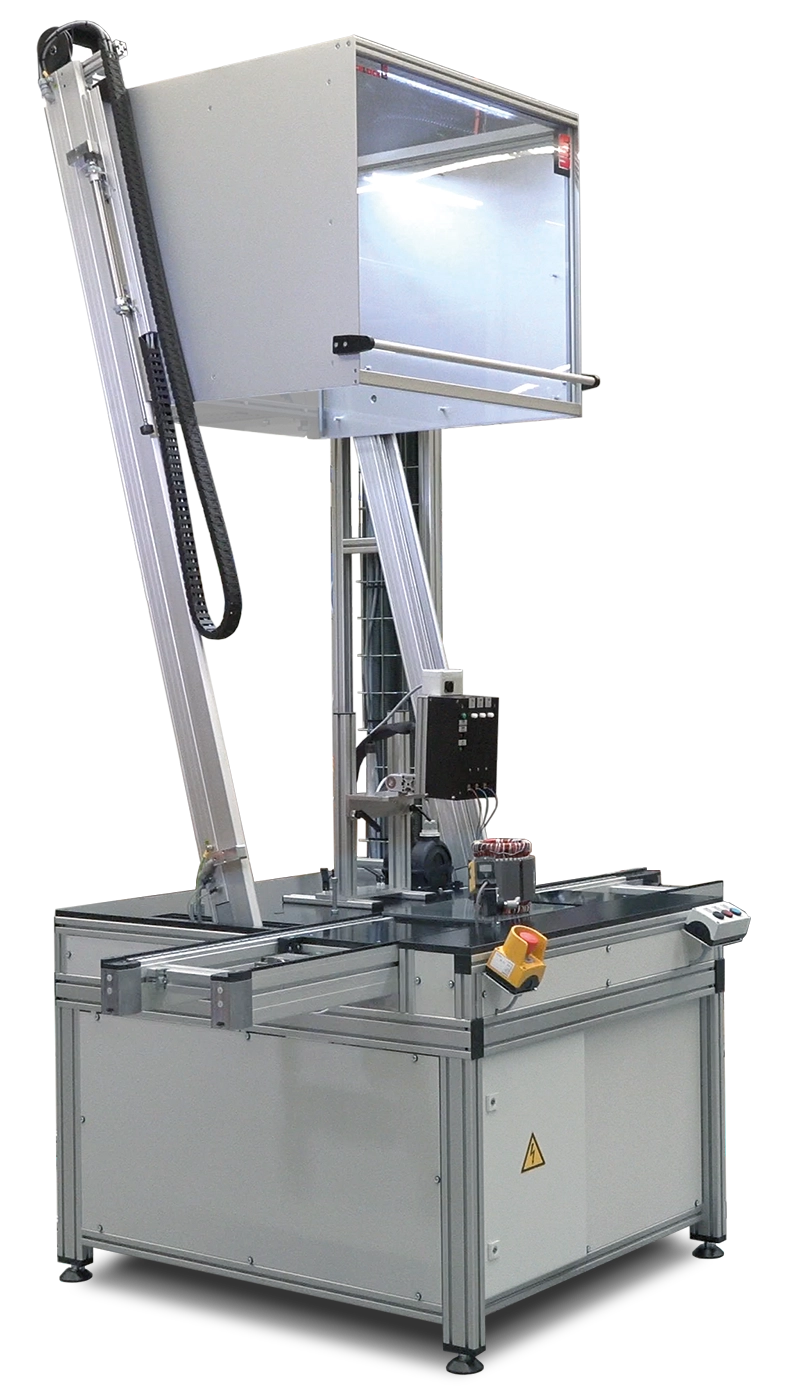

Customized test cover continuous transfer tape and integrated test setup.
The test cover constructed as a Faraday cage on all sides. This allows very precise measurements to run without external interference.

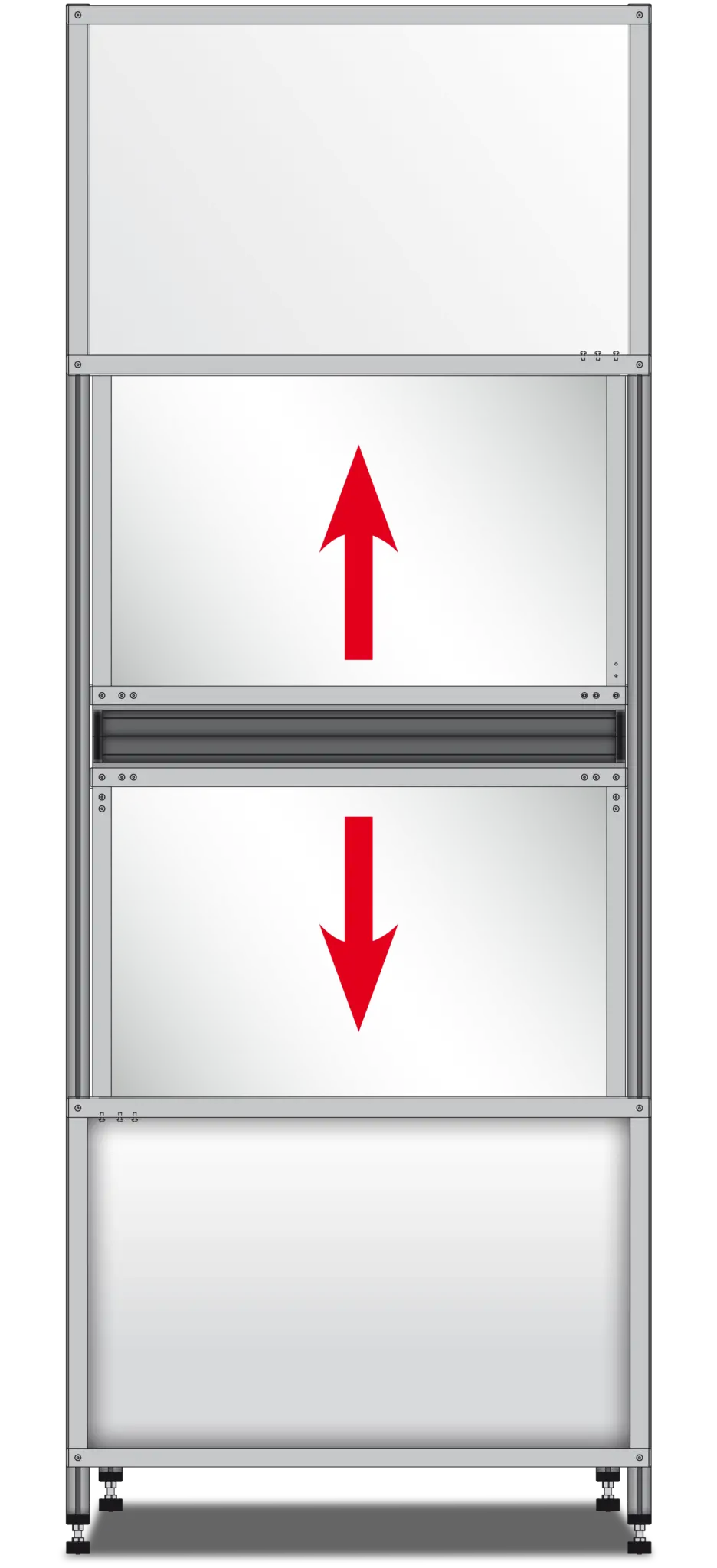

Single test hood model 21
All facts at a glance
Perfect touch protection
-
Extensive selection of standard test hood variants
-
Mechanically robust and durable designs
- Designed for tough use in industrial environments
- Long service life and reliable operation
- Integrated result lights
-
Space and solutions for terminals, contacts, and built-in components
-
Automatic start after closing
-
Immediate interruption of the current test when opening
- Up to performance level PL e
- Dual-channel safety evaluation
- Transparent test cover observing the test object during testing
- options
- bonnet retention
- automatic closing
- automatic opening
- Table frames with and without casters
- Reinforcement for heavy-duty test specimens
- ESD version
- integrated lighting
- solutions
- for integration into automated production lines
- for integration into your specific testing project—e.g., with robots
- for the installation of manual contacts/adapters
- for the installation of automatic contacts/adapters
