Connection boxes

Quick and easy contacting of devices under test

Connection boxes are used for quick and reliable contacting of the power connections of the device under test.

Key Facts:

Adaptable to country-specific sockets
Quick-release terminals for connecting stranded conductors
Fast wear part replacement
Side connection for the test probe
Flexibly mountable at the workstation
Available in various sizes and designs
Also available as a custom solution – tailored to your requirements

20 Product Variants

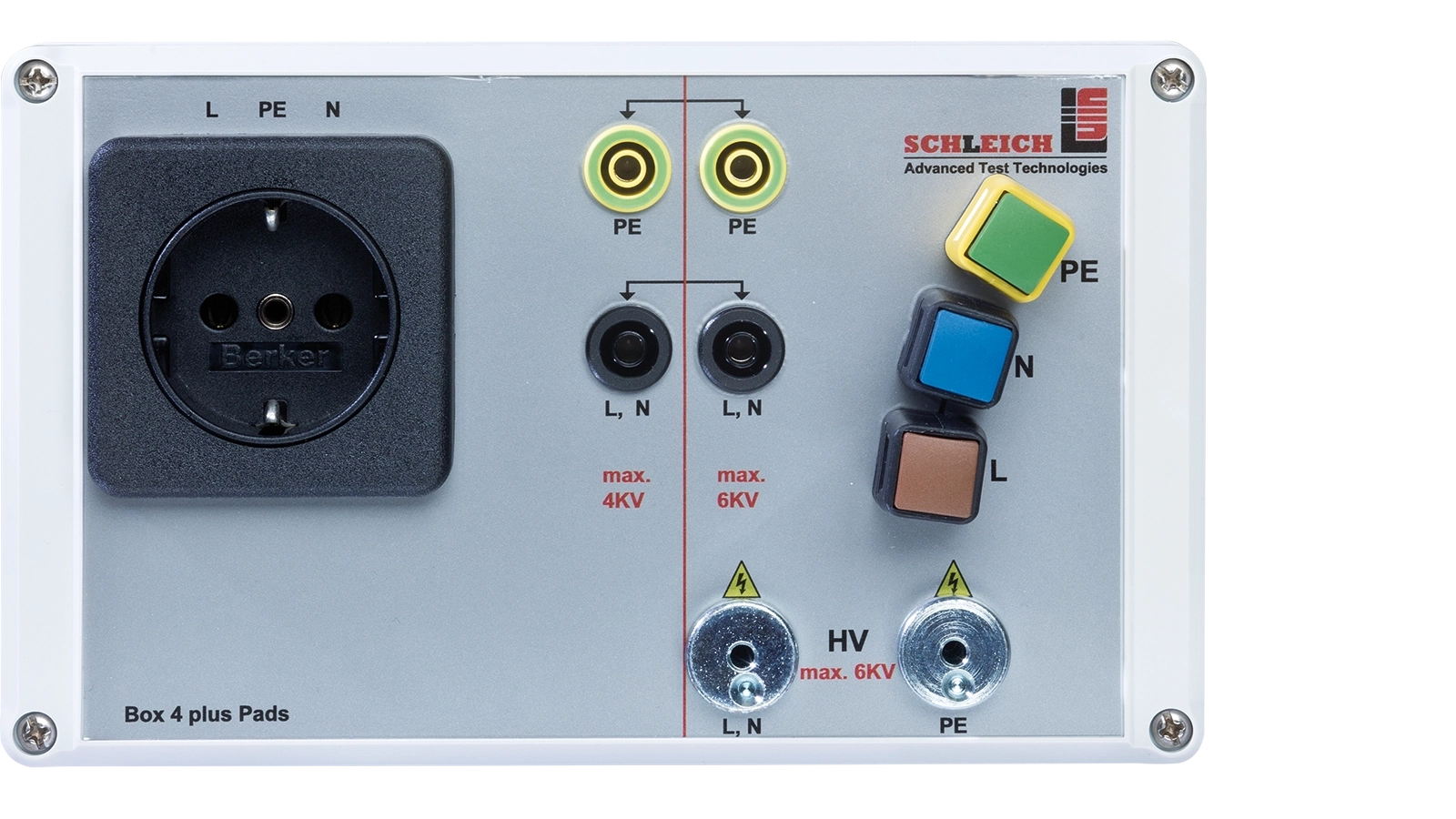

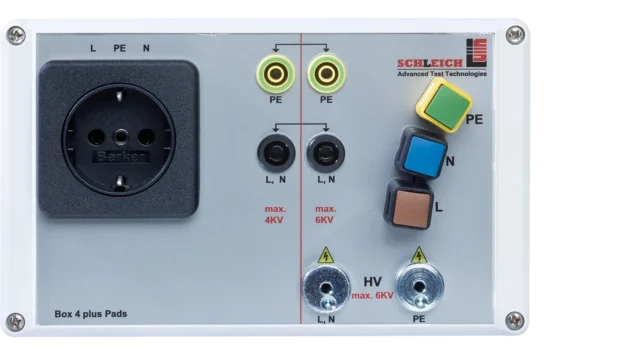

Connection box Model 4 – with test probe pads

for device class	GLP1-g
	GLP2-BASIC
Availability	in 5 working days
Order number	40108890

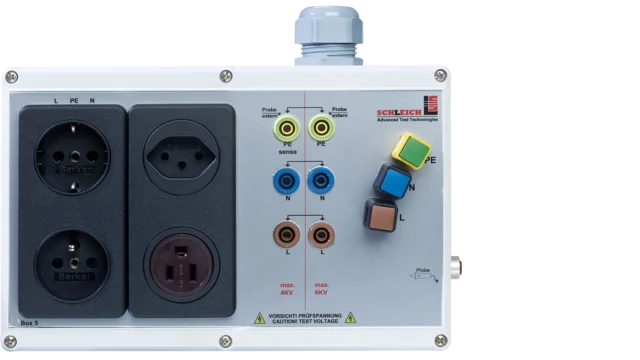

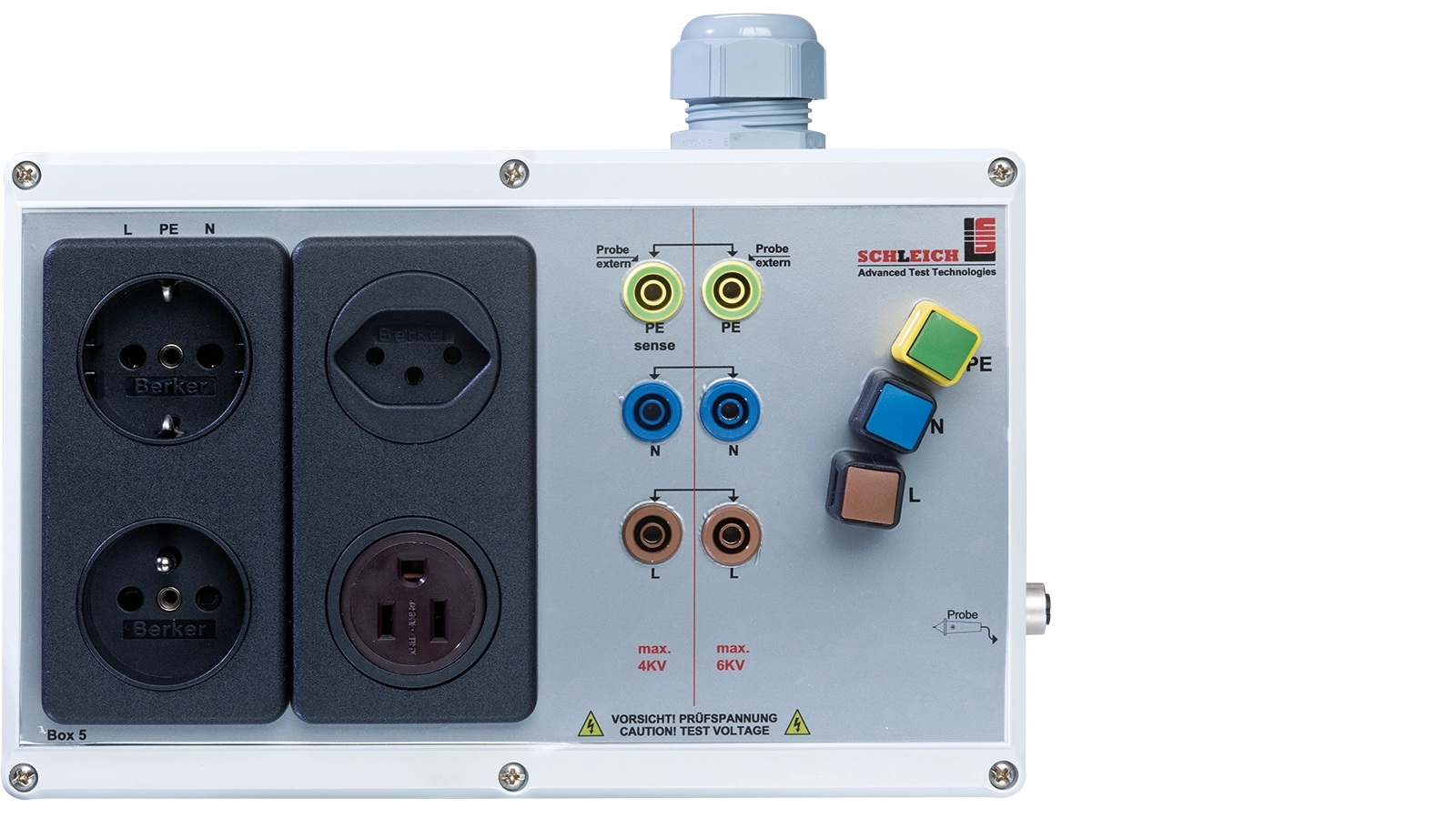

Connection box Model 5 – with HV, with leakage current

for device class	GLP2-BASIC
Availability	in 5 working days
Order number	40108878

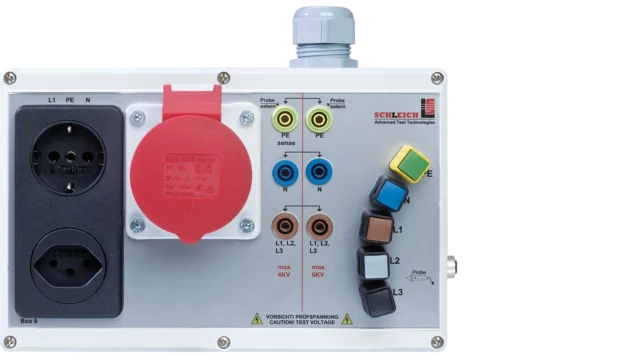

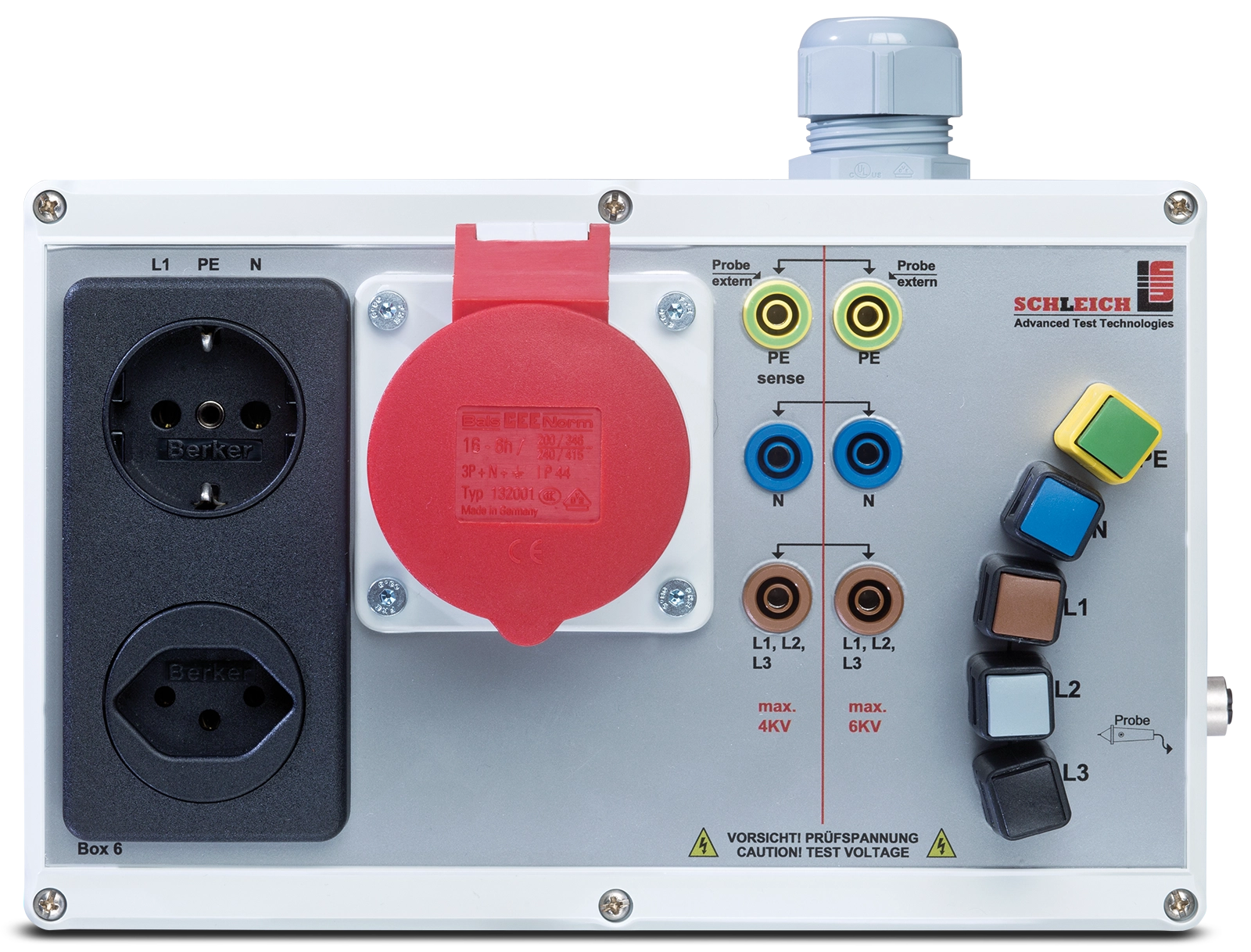

Connection box Model 7 – with HV, with leakage current

for device class	GLP2-BASIC
Availability	in 5 working days
Order number	40108902

Show all 20 product variants

Sophisticated connection technology for productive contacting.

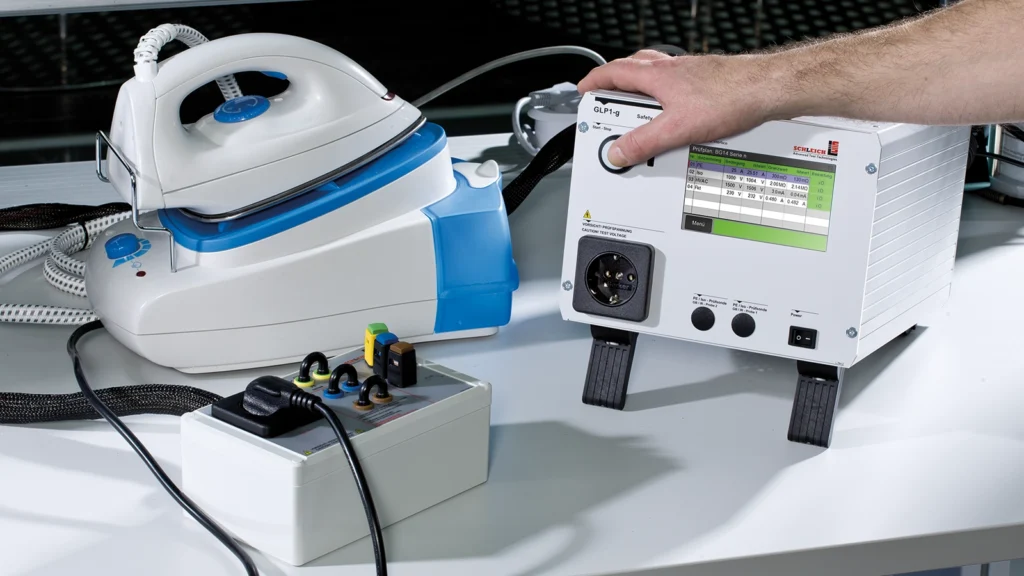

Many devices under test can be connected using a mains plug, which is inserted by the operator into the test socket of the connection box. The various test sockets are equipped on an order-specific basis according to custom requirements.

Standard connection boxes are available in various designs; furthermore, we custom-manufacture the appropriate contacting solution for your application.

For connecting bare wire ends, the connection boxes are additionally equipped with quick-release terminals, which are, for example, connected in parallel to the test socket.

Since some country-specific test sockets are not suitable for the full high voltage of 6 kV, the test sockets can be disconnected via bridge plugs. Furthermore, SCHLEICH also supplies specially manufactured high-voltage resistant specialized test sockets up to 6 kV.

It is also possible to connect measurement leads for specialized measurement purposes to 4 mm pole sockets.

Do you need a special solution?
We are happy to assist you. Our 3D design and printing capabilities provide even more solutions. We would be pleased to assemble your configuration. For this, we draw on an extensive modular system that enables efficient implementation.
