baking systems

Universal systems for coil production

Baking systems are used to securely connect all components of an electrical winding to each other and to the laminated core.

Heat is always the basis of the process. It is needed to bond the enameled wires together or to bond the insulating resins to the winding. To heat the winding, electricity is passed through it. This causes electrical losses in the winding resistances, causing the winding to heat up. We call this principle the "electricity-heat process." By precisely measuring and regulating the flowing current, the heating process can be controlled accurately and reproducibly.

With SCHLEICH, up to 8 baking processes can run simultaneously and independently of each other.

Key facts:

  • electric heating systems
  • Electrical heating of coils of all types
  • DC baking systems
  • AC baking systems for interlocked three-phase windings
  • Up to 100 kW
  • Up to 2,500 A
  • Up to 1,000 V
  • Up to 250A/mm² and more – depending on the load capacity of the winding contact
  • thermal bonding coils in series or parallel connection

Baking systems – controlled heating with electric heat

With our baking systems, coils manufactured with baking enamel wire can thermal bonding immediately after winding. If necessary, thermal bonding can run before and after thermal bonding .

The windings made with baking enamel wire are heated to the melting temperature of the baking enamel using electric heat with temperature control. Once the desired target temperature has been reached and the windings have cooled down, the winding wires bond together. The entire winding then forms a solid unit.

The process-reliable procedure is controlled and monitored by computer.

Depending on the current density, stator winding size, different heating times result. By varying the current density, heating times between 1 and 300 seconds can be achieved. The aim is to achieve a very even temperature distribution within the winding and thus very good, homogeneous bonding in all parts of the winding.

The bonding systems are suitable for all types of windings. Provided that the winding contacts allow a significantly higher current flow than during normal operation, single coils as well as single-phase and three-phase stators andarmature can thermal bonding armature thermal bonding .

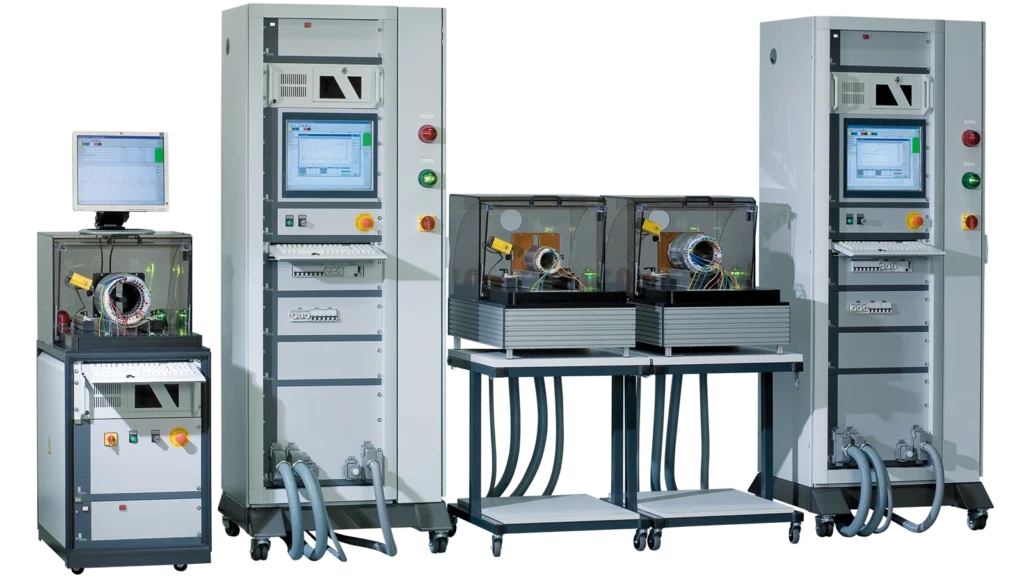

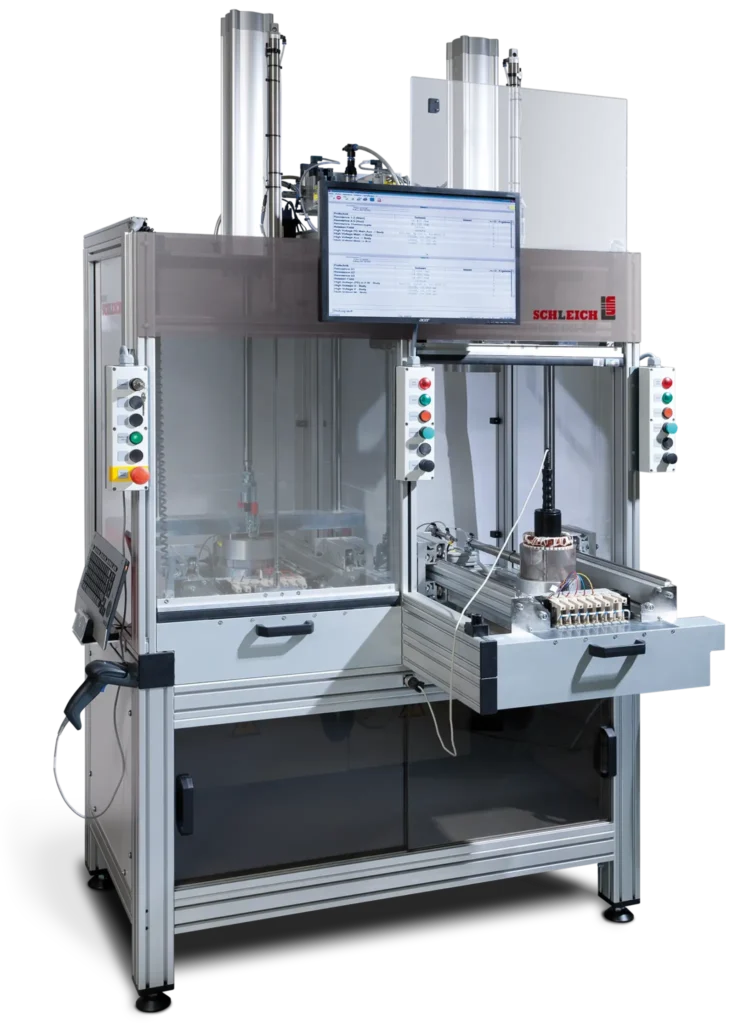

Manual baking systems

In manual baking systems, the winding ends are connected by the operator. A wide range of different manual connection options are available for this purpose. These are specialized designed specialized high temperatures and high currents.

The contact devices can also be equipped with an automatic opening function. This saves working time, as the operator thermal bonding longer has to remove the winding ends individually from the contact after thermal bonding .

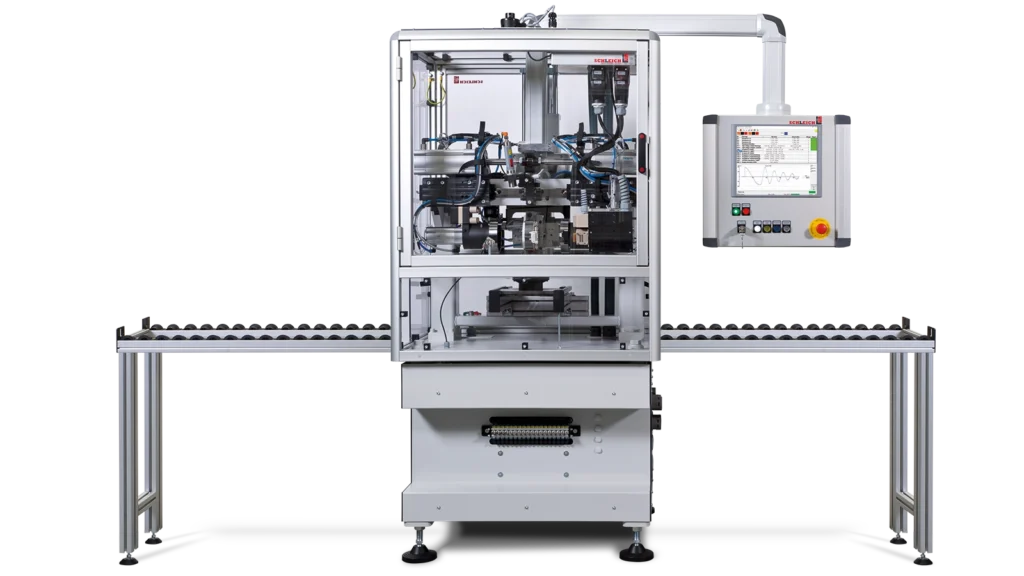

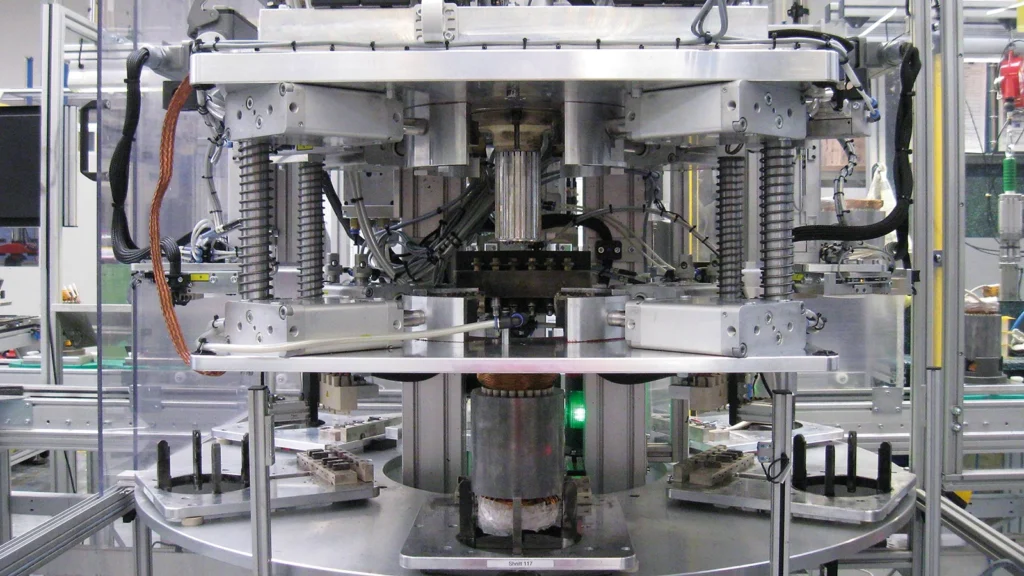

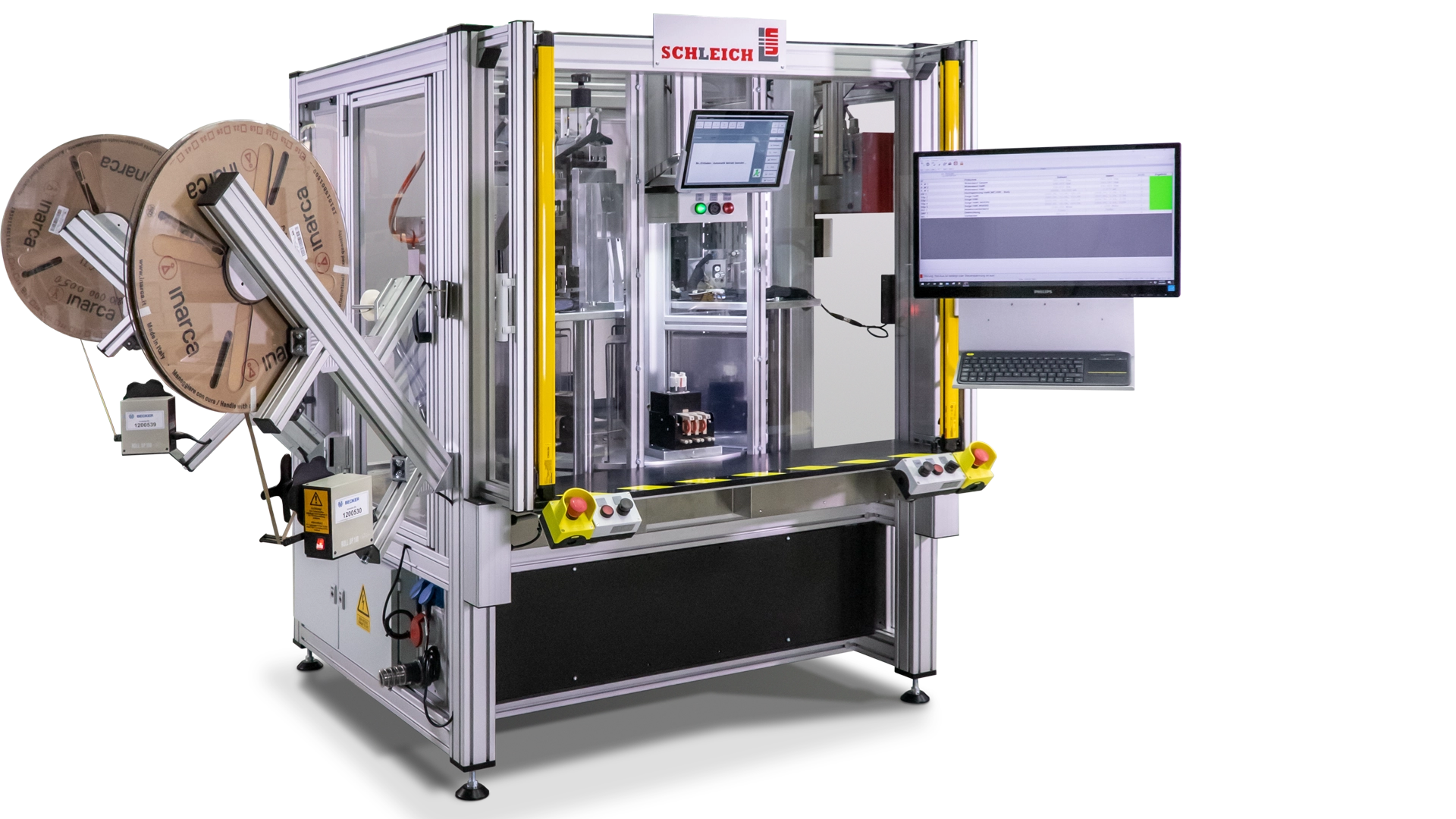

Automatic baking systems

In automatic baking systems designed as continuous production lines, the entire process runs fully automatically. The workpiece carriers with the coiled goods to be bonded are automatically stopped and separated by the bonding system the line control system. They are then lifted into the bonding position. The subsequent shaping by forming tools and the contacting of the free coil ends or a plug is also fully automatic.

Even unwrapped winding ends can be contacted. Special contacting tools ensure that the wire is contacted through the insulation.

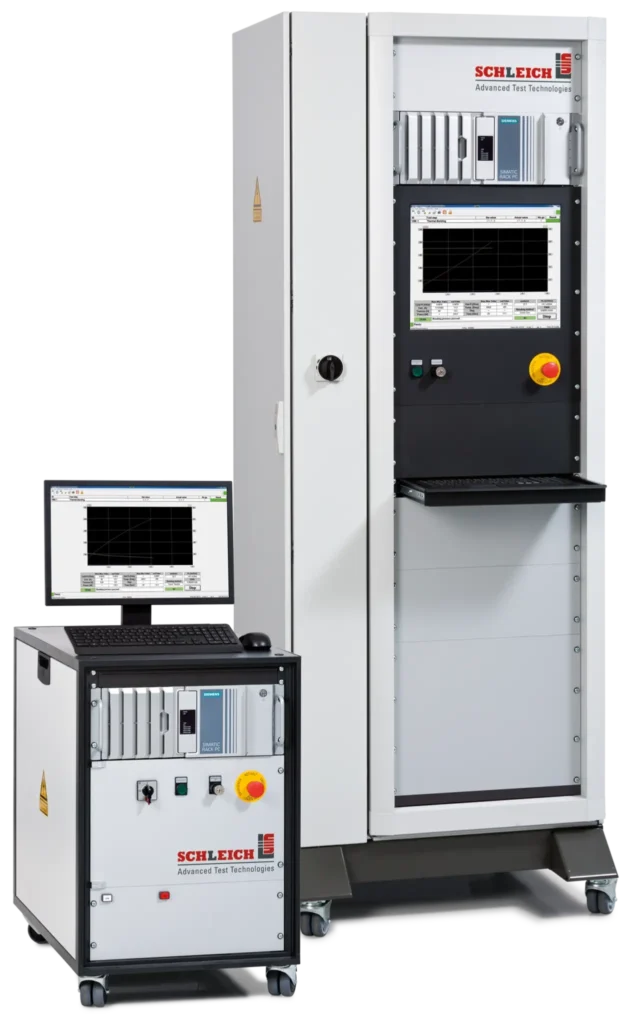

The basic devices

The SCHLEICH considers thermal bonding one step in a chain of test steps.

It does not make economic sense to thermal bonding a faulty winding. For this reason, additional tests are often carried out on the winding before electrical heating. It may also be advisable to carry out a final test after the heating process.

Depending on the scope of the desired tests, the MTC3 winding test system or the GLP3 function test system is used as the base device. The software functionality is identical for both test devices. Compared to the GLP3, the MTC3 has the additional advantage that run also run surge voltage and partial discharge tests. The configuration is custom so that the test methods and the type of current heat required are precisely tailored to your application.

We consistently rely on the integration of an industrial PC for testing, process control of electrical heat, and storage of heating/test plans and results. A simple and clear user interface makes it operator for operator to control the system.

The displays during testing and current heating are clear, showing only the important data and graphics.

Numerous statistical evaluations support quality assurance. A wide range of different print protocols serves as proof of the quality delivered to your customers.

Standard equipment

electric heating

  • voltage, current, and power to suit your task
  • Integrated DC or AC power module
  • Five methods for regulating electrical heat
  • Temperature-controlled heating
  • Continuous temperature measurement during heating
  • Graphical representation of temperature and current
  • Integrated excess current and quick shutdowns
  • Tool temperature monitoring
  • Very fast measurement technology, 100 kSample ideal forcontact monitoring
  • Highest measurement accuracy
  • kWh energy meter per heating process

testing methods

Standard equipment:

  • Resistance test μΩ to 500 kΩ
  • Superimposed resistance measurement during heating
  • Start temperature compensation:
    Room temperature sensor
    Infrared pyrometer
    Thermal imaging camera
  • visual test
  • surge test 6 kV (only if the MTC3 is used as the base device)
  • high voltage test (only if the MTC3 is used as the base device)
  • Insulation resistance test (only if the MTC3 is used as the base device)

Optional:

  • Partial discharge test with surge test only if the MTC3 is used as the base device)
  • high voltage test up to 6 kV
  • Partial discharge testing with high voltage AC
  • sense of rotation test the rotating field

Function and technology

  • Powerful industrial PC

  • SQL or ACCESSmemory limits

  • Clear screen display without sensory overload
  • Microsoft® Windows operating system

  • Powerful test plan editing

  • Automatic logbook and management of test plan history
  • Integrated plausibility checks for all parameters

  • Fast, precise measurement technology

  • Enormous configuration options

  • Script editor for maximum flexibility

  • Test plans and test results Save

  • Local or network storage

  • Monitoring switching cycles in accordance with Industry 4.0

  • Remote maintenance and remote calibration via remote access
  • Numerous national languages

Communication

  • USB ports on the front and rear
  • RS232 and LAN/Ethernet automation interface
  • Digital I/O interface
  • Result outputs for GO n.GO
  • Interfaces for barcode scanners and label printers
  • CAN bus

Optional automation interfaces:

  • EtherCAT
  • PROFIBUS
  • PROFINET
  • and more

safety

  • 2-channel start input
  • 2-channel safety inputs according to EN 50191
  • Integrated emergency stop and Connection external emergency stop
  • Connections for warning and result lamps
  • Safety and warning messages
  • Outcome for GO n.GO
  • Operating hours and switching cycle counter with maintenance instructions
  • Cycle counter for tools with maintenance instructions
  • status outputs

Heating of windings with electrical heat

To generate heat, direct or alternating current flows through the winding. The power loss that occurs at the winding resistance is converted into heat.

A high current density is desired in order to achieve a short heating time. This is limited by the wire cross-section and, if applicable, by the type of contact. To avoid damage, the wire and contact must not be overloaded.

A power module in the heating system is responsible for generating electricity. It is controlled and regulated by the system's software.

The system's extremely fast and highly accurate measurement technology delivers hundreds of thousands of current and voltage readings per second. The software uses these readings to continuously calculate the winding temperature, among other things. Based on the process values determined, the software regulates the power module according to different heating methods.

Constant voltage method

This is the simplest method. The voltage kept constant throughout the entire heating process. The initial current flow decreases as the copper resistance of the winding increases with rising temperature. The heat energy supplied to the winding decreases.

The advantage of this method is that the temperature rises relatively slowly, ensuring that the winding is heated thoroughly and evenly. The temperature difference between the winding in the winding head and the winding in the slot therefore usually small when the baking temperature is reached. However, since the maximum current density is only reached at the beginning of the heating process, the desired final temperature is only reached after a relatively long time.

Constant current method

In this process, the current is kept constant throughout the entire heating process. Since the copper resistance of the winding increases with rising temperature, this is only possible by means of a voltage increase controlled by the regulator.

Compared to constant voltage , the desired final temperature voltage reached much faster.

Procedure for elevated initial temperatures

This procedure can be used, for example, during repair work. In such cases, the winding is often still very warm. The heating system detects this elevated winding temperature and starts the heating process with this initial value.

Additionally constant final temperature

The time during which the baking varnish layer on the wire surface softens and can bond with the adjacent wires may be too short if the machine is switched off immediately upon reaching the melting temperature. As a result, the wires in the slot may remain laminated core cooler than in the winding head slot the surrounding laminated core . This can lead to a loss of quality.

The constant voltage or constant current method can therefore also be configured so that, if necessary, the device is not switched off immediately after reaching the desired melting temperature, but the temperature is kept constant for some time.

This extends the time during which the baking varnish layer on the wire surface can melt homogeneously and form a secure bond with the adjacent wires.

Process with temperature profile

To do this, the operator specifies operator desired heating profile in different time zones. In the event that the integrated power module voltage supply the current or voltage , this is checked in an upstream plausibility check and corrected if necessary.

This procedure is the standard procedure for an impregnation plant, which is also thermal bonding in thermal bonding .

The software

The software is based on the MicrosoftWindows® operating system.Theoptimized user interface enables user-friendly execution of

  • Heating with electricity
  • examination
  • Heating/test pan creation
  • Printing test reports
  • Statistical evaluation of the results

All heating and, if necessary, testing is performed fully automatically. The measurement results are continuously displayed and evaluated during the processes. The clear pass/fail display visualizes the automatic evaluation.

The process can be edited by simply adding or removing heating and testing steps. This allowstheprocess to be optimally adapted to different requirements. Each individual step can be quickly edited by double-clicking on the respective step.

The comprehensive integrated user management system ensures that only authorized persons run these changes. Additional work instructions maketheheating system the perfect ISO 9001-compliant production system.

The input

To edit heating and test parameters click on the work step to change parameters and adjust tests. There is no need to use a cumbersome test plan editor. The settings are displayed to every operator, but can only be changed by authorized persons. All changes are stored in the history management and logbook.

The data

The system saves heating plans and results either locally on the hard drive or in anmemory network. We recommend networking the test devices due to the following advantages:



  • All test devices in the network test results a shared memory test plans and test results
  • All test devices Test the same specifications.
  • A central memory all testing systems in a global network makes it easier for you to ensure the quality of your products worldwide. Regardless of location.
  • At the same time, you gain insight into all test results from one or more locations.
  • Thanks to their simple connection to ERP, PPS, or CAQ systems, the testing systems can be optimally integrated into factory planning and production control.

The statistics

Meaningful statistics can be calculated on the basis of a large number of test results. That is why, during the development of GLP3, great importance was attached to the sensible and well-thought-out storage of test results a long period of time. Freely configurable search filters enable every operator memory the data relevant to them quickly and easily in the memory . Individual evaluations or summaries of test results a longer, freely definable period of time with subsequent statistical evaluation are possible.

Trend displays and Gaussian distributions provide clear information about the qualitative status of production. The GLP3 can Save display your data on a daily, weekly, and monthly basis Save by order or by batch. With the integrated comprehensive export functions, the operator can memory operator from the memory to insert it into other databases or process it further in Excel® format. This gives you the option of performing your own additional evaluations.

The memory be based on SQL or ACCESS®. For larger amounts of data or for use in networks, we recommend usingMicrosoft® SQL.

Contacts, spreader pins, and mold shells

One of SCHLEICH particular strengths SCHLEICH in the mechanical adaptation of stators and their special contacting. The heating system and mechanics are manufactured according to your specific requirements. Manually or pneumatically operated four-wire terminals are used. It is crucial that they transmit both the high currents and the measurement signals perfectly.

The design is carried out directly at the 3D CAD workstations in our company. State-of-the-art CNC machines in our mechanical production facility guarantee professional and cost-effective manufacturing of the components.

Contacts

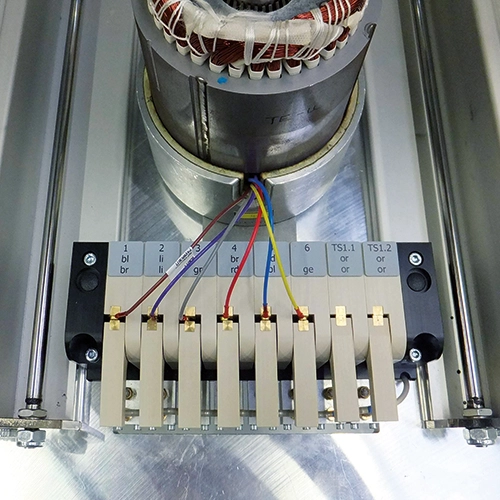

Manual contacting with high-temperature multi-conductor contacts and automatic opening

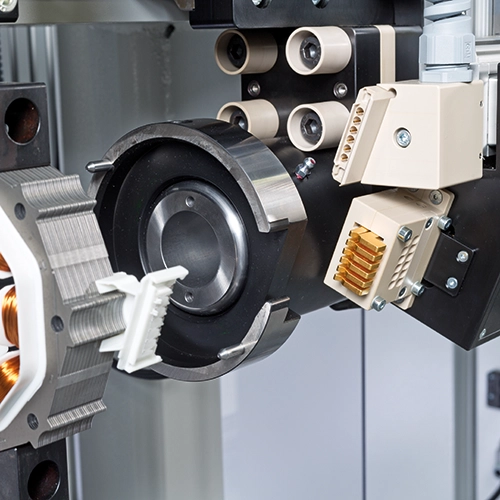

Automatic contacting with forming tool

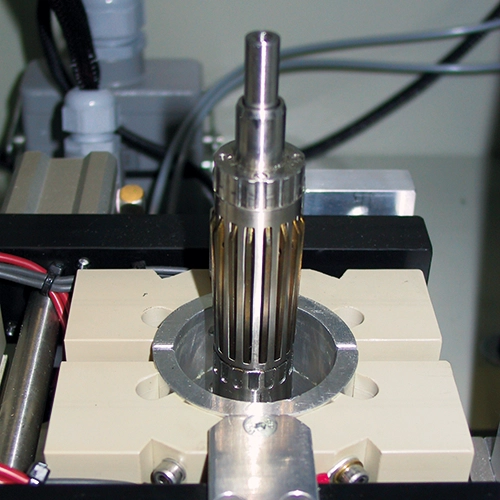

spreading mandrels

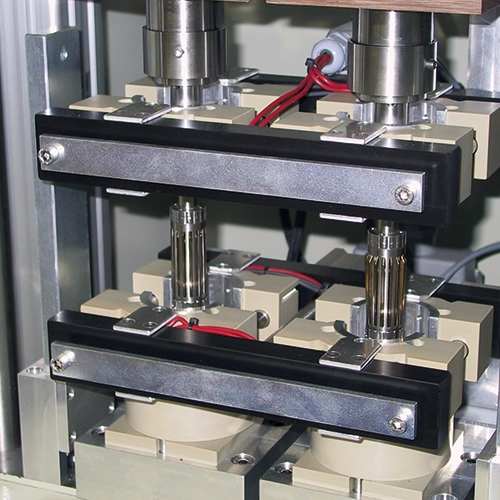

Spreading mandrel with forming tool

Double system with spreader mandrel and forming tool

molding tools

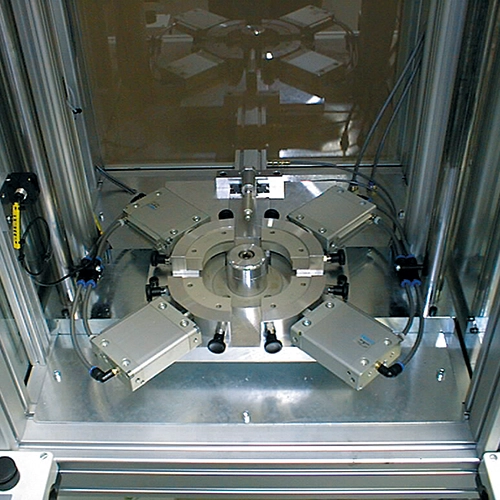

Molding tool in the baking cell

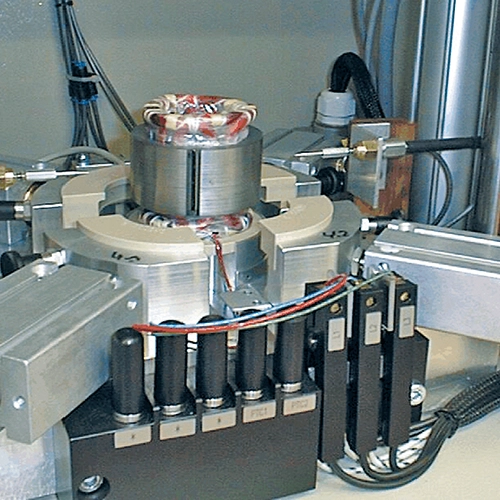

Form molding with contacting

Integration into a network

Heating and test plans as well as results can be stored locally or on a central server. This ensures high data security and optimal data exchange between different test systems.

The heating systems work optimally in all network infrastructures. This feature provides the ideal platform for collecting, managing, analyzing, and distributing information.

Proven and widely used technologies fromMicrosoft® memory used as memory .

The heating systems can also be ideally networked with ERP, PPS, and CAQ systems. provide tried-and-tested, customer-optimized standard solutions for all requirements.

network failure

Each test device automatically stores local copies of the current server test plan database so that it can continue to operate in the event of a network failure.

In the event of a network failure, the local test plans are used and the test results are stored test results on the test device.

After restoring the network connection, the test device test results transmits the test results back to the server, so that thememory is up to datememory .

The MTC3 in a complex global network

TheWindows®-basedheating systems can be operated in network topologies of any complexity. You can install any number of testing devices at different company locations worldwide, all of which test results with a centralmemory test plans and test results . Our extensive experience in the global networking of our testing devices gives you the safety of being able to offer the same product quality regardless of the production location.

Of course, all test plan, printing, labeling, and statistics tasks can also run on the individual test devices. However, in order not to disrupt the production process, it is advisable to use separate workstations for this purpose in networked systems. These workstations use the same software as the test devices in order to achieve the highest possible level of user comfort.

The label tags can also be stored centrally on a server. The testing device loads the appropriate label according to the respective test plan and transfers the data to a thermal transfer printer after testing. The labels can also be designed according to your requirements.

In the case of remote maintenance (via remote access), we can temporarily dial into your network if necessary and connect directly to the individual test device. This allows us to see the screen content of your test device directly at our premises. With your permission, we also have access to the mouse and keyboard. Of course, this work is only carried out in consultation with you and requires separate access authorization on your part.

Automation

Fully automatic heating systems in production

The heating systems can be integrated perfectly into automated production. Automation is one of SCHLEICH particular strengths due to the company's structure.

In addition to software, electronics, and systems engineering , automation systems engineering involves mechanics and mechatronics. These services are provided by SCHLEICH , our CNC machining centers, and mechanical assembly.

Integration into your existing automation system

You have automated production and would like to integrate the heating system into your production. To do this, the testing device can be PLC remotely controlled via interfaces from a PLC . If necessary, test plans and test parameters can also be transferred test parameters the testing device. Feedback on test results both qualitatively and quantitatively.

Integration into a SCHLEICH test system

We supply systems consisting of the heating system, the contact system, and complete mechanical automation. Everything is turnkey from a single source. All automation components are SCHLEICH , designed, manufactured, assembled, and commissioned in-house SCHLEICH .

In addition to thermal bonding , the heating system often thermal bonding controls the automation sequence. For higher degrees of automation, a PLC is PLC as an alternative. We respond to customer wishes and requirements on a highly customized basis.

The result a solution tailored precisely to the task at hand.

Data exchange inautomation

The heating systems are ideal for integration into automation systems. To this end, they offer an enormous variety of different interfaces for communication with a wide range of automation systems.

Typical requirements are:

  • Control of complete processes and components
    – Processing of inputs, signal transmitters, scanners, RFID readers...
    – Setting outputs for e.g. cylinders...
    – Control of motors and drives...
  • Exchange of start, Stop, and result signals
  • Direct communication with a PLC
  • Bidirectional communication
    – Receiving test plans and test parameters
    – Sending qualitative and quantitative test results
    – Sending raw data
  • Communication with robots, cameras...



These tasks are performed by our configurable standard software modules, which reduce the effort required to integrate the MTC3 into automation systems to a minimum.

Data exchange with IT systems

Data exchange between heating systems and other IT systems is carried out using tried-and-tested solutions.

Typical applications:

  • Importing production orders from ERP systems
  • Automatic dynamic generation of heating and test plans from production orders and parts lists
  • Automatic generation of serial numbers from production order data
  • Feedback of results to ERP systems
  • Receiving label data for label printing
  • Communication with special systems in the automotive industry



Our standard software modules reduce the effort required to integrate heating systems into an IT system to a minimum.

Traceability in the production chain

Traceability gives you the ability to obtain clear and complete information about the entire manufacturing process, even retrospectively. In the event of quality problems during production or after delivery, traceability allows you to respond in a targeted manner.

We provide answers to the following questions:

  • Which end products, assemblies, and components are affected?
  • Which customers have the end products, assemblies, and components?
  • Which assemblies and components are installed in the end product?
  • When, where, and by whom were which parts processed in the manufacturing process?
  • Who manufactured or supplied the assemblies and components?
  • What test results available for the individual assemblies and the final product?



In order to answer these questions, each component, assembly, and end product must be clearly labeled with a number or code. Additional information such as customer number, supplier number, batch number, etc. may be required for better traceability and searchability.

The heating systems are capable of recording these markings and additional information, e.g., via barcode entry, and Save together with the test results, the test date, and the tester's name in the memory testing device or in the network. This information can later be used to trace where, when, and by whom components were processed or delivered in the manufacturing process.

All facts at a glance

Customized heating and testing systems for coil production

  • electric heating systems
  • Electrical heating of coils of all types
  • DC baking systems
  • AC baking systems for interlocked three-phase windings
  • Up to 100 kW
  • Up to 2,500 A
  • Up to 1,000 V
  • Up to 250A/mm² and more – depending on the load capacity of the winding contact
  • Five heating strategies
    • constant voltage
    • constant current
    • constant temperature
    • temperature profile
  • thermal bonding coils in series or parallel connection
  • Standard and flash baking technology
  • Display of the temperature curve during baking for up to 8 parallel baking processes
  • Integrated four-wire
  • Online temperature monitoring
  • Online clamping point monitoring (optional)
  • Dynamic overcurrent monitor
  • Ground fault monitoring (optional)
  • Monitoring of integrated sensors/temperature probes
  • Can be combined with the following additional tests:
    • Surge test
    • partial discharge
    • High voltage AC/DC
    • rotating field
  • Integration into an existing automated production line
  • Integration into an automation system
    • Communication with PLC based on all common bus systems
    • Communication with goods carriers, e.g., via RFID
    • Communication/data exchange with ERP or MES systems

Project examples

Rotary indexing table with six stations

Rotary indexing table for automatic insertion of cut and clamp contacts and subsequent testing and bonding process. Loading and discharge manually, while the sequence at the five processing stations is fully automated.

  • Automatic setting of cutting clamps
  • Cutting off the wire ends, including suction of the residues
  • Complete winding test with high voltage, surge test, resistance, and sense of rotation
  • thermal bonding the winding parts
  • Marking of GO
  • MTC3 for winding testing
  • GLP3 for thermal bonding overall system control

Fully automatic testing and bonding system

The test cell is part of the customer's production line and wasbuilt-in by SCHLEICH . The mechanical processes are controlled and communication with the production line is handled via a PLC.



  • Test objects are placed on goods carriers
  • Insertion of a product carrier into the test cell
  • Lifting the entire goods carrier into the processing position
  • Grasping the test object and swiveling it into the final machining position
  • Automatic contacting in four-wire technology
  • Test thermal bonding
  • MTC3 for winding testing
  • GLP3 for testing and thermal bonding communication with ERP system

Test and bonding system a rotary indexing table

Large rotary indexing table for Test thermal bonding motors with manual loading and unloading station.

  • Automatic contacting
  • MTC3 for comprehensive winding testing
  • GLP3 for thermal bonding and system control
  • Extraction of baking fumes
  • Bidirectional communication with the higher-level MES

Manualbonding system

Two baking cells combined on a solid table.

  • Two baking cells for increased efficiency
  • Automatic switch-over cells
  • Pull-out drawers for convenient loading and discharge cells
  • Manual contacting
  • Stamp for shaping the winding
  • Automatically operated protective doors


Downloads

Do you require personal product advice?

We would be happy to provide you with comprehensive support and advice regarding all our products and services.
Call us or send us an email!

  • Subscribe to SCHLEICH

    Our free newsletter—delivered directly to your inbox.

  • Fields marked with * are mandatory.

  • Contact form

  • Fields marked with * are mandatory.
  • Accepted file types: pdf, jpg, jpeg, Max. file size: 10 MB.
    • They are only uncompressed JPG/JPEG and PDF files allowed.
    • The maximum file size is 10 megabytes.
